Danfoss VACON NXP DC/DC Converter Module
The Danfoss VACON NXP is a Frame 09 cabinet-mount air-cooled DC/DC converter module rated for grid-scale BESS applications. Each unit delivers 205 A continuous (110 kW, normal overload) across a wide 465-800 Vdc input window, runs ADFIF101 DC/DC converter firmware on the NXP platform, and communicates via Modbus/TCP. The lot of 16 was removed from an operational energy storage installation and is available for immediate inspection and testing.
Availability
- Quantity available
- 16 units
- Total weight
- approx. 1,072 kg net (67 kg per unit)
- Location
- United Kingdom
- Status
- Available inventory
- Partial lots
- Subject to negotiation
- Pre-shipment inspection
- Third-party inspection can be arranged
Condition
- State
- Used
- Service history
- Unknown, not recorded
- Manufacturer
- Danfoss Drives (VACON brand) manufactured in Denmark
- Origin
- Removed from a grid-scale BESS installation; inverters only, containers not included
Technical Specifications
- Part number
- 136H9769 EAN 5710108763343
- Model code
- NXI02055-A0T0ISG-A1A20000CI+DCD3+ADFIF101
- Rated current (normal overload)
- 205 A continuous
- Rated current (high overload)
- 170 A continuous
- Power (normal overload)
- 110 kW
- Power (high overload)
- 90 kW
- DC input voltage
- 465-800 Vdc
- AC mains voltage
- 380-500 Vac
- Rated frequency
- 50 Hz
- Frame size
- Frame 09 INU
- Enclosure rating
- IP00 cabinet-mounted
- Cooling
- Air-cooled
- Brake chopper
- None
- EMC standard
- IEC 61800-3 suitable for IT networks (TN/TT/IT)
- Certifications
- CE, UL, RCM (N16307), Korean (KC), Ukrainian, EAC
- Display
- Alpha-numeric
- Slot A
- 6 DI, 1 DO, 2 AI, 1 AO, +10 V ref, +24 V
- Slot B
- 2 Relay outputs (NO/NC)
- Slot E
- Modbus/TCP
- System firmware
- NXP
- Application
- ADFIF101 NXP DC/DC converter application
- Software license
- DC/DC converter, output max >75%
- Languages
- English FR, IT, ES, PT locale packages included
- Dimensions (W x H x D)
- 239 x 1,030 x 372 mm
- Net weight
- 67 kg per unit
- Gross weight
- 68 kg per unit
Documentation
Available documents are shared with qualified buyers on request.

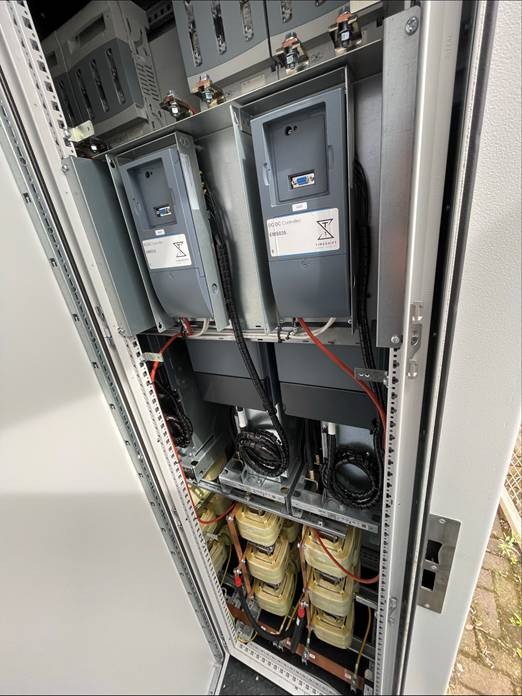

Product Images
Specifications are sourced from the manufacturer product listing and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Condition and service history reflect information available at time of listing. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
