Toshiba SCiB Type3-23 LTO Module
The Toshiba FM01202CCB01A is a SCiB Type3-23 lithium titanate oxide (LTO) module: 24 cells in a 2P12S configuration delivering 45 Ah at 27.6 V nominal, for 1.242 kWh per module. LTO chemistry favours long cycle life, a wide operating temperature range and fast-charge capability over energy density, suiting grid-support, transit and industrial applications where longevity and safety are the priority.
Availability
- Quantity available
- 300 modules (≈ 372.6 kWh total)
- Total energy
- 372.6 kWh
- Location
- United States
- Status
- Available inventory
- Pre-shipment inspection
- Available on request
- Hazmat class
- UN3480 - Lithium Ion Battery (Class 9)
Condition
- State
- New surplus inventory, unused (original packaging)
- State of health
- 100% (per seller, not independently tested)
- Manufacturer
- Toshiba
Technical Specifications
- Part number
- FM01202CCB01A
- Chemistry
- LTO (Lithium Titanate Oxide)
- Cell configuration
- 2P12S (24 cells)
- Nominal capacity
- 45 Ah
- Nominal voltage
- 27.6 V
- Nominal energy
- 1.242 kWh (1,242 Wh)
- Weight
- 14.6 kg
- Chemistry
- LTO
- Nominal capacity
- 22.5 Ah
- Nominal voltage
- 2.3 V
Documentation
Available documents are shared with qualified buyers on request.

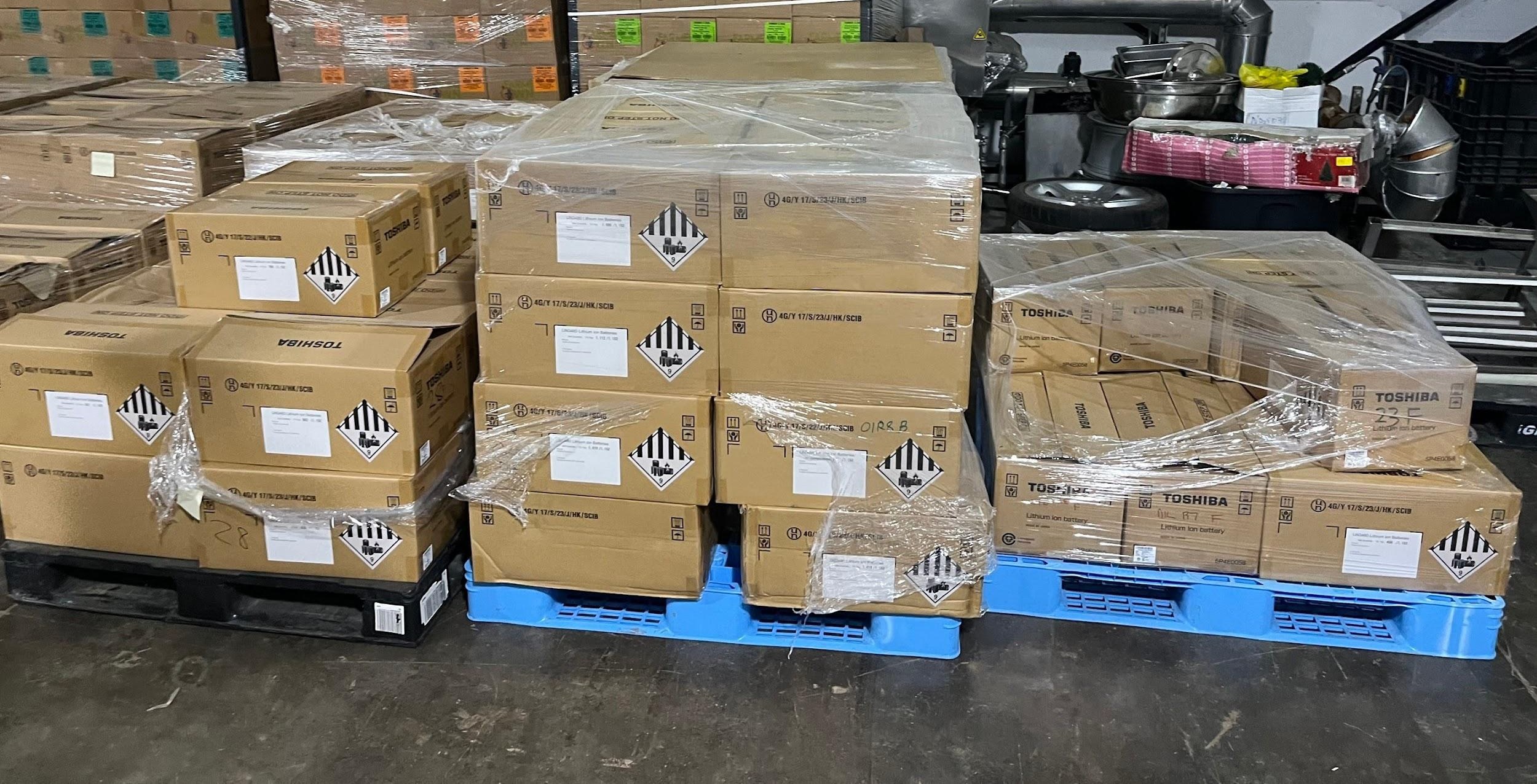

Product Images
Specifications are sourced from the manufacturer spec sheet and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
