LST-170
Available Inventory

Fiat E-Ducato

Used · Ex-test-vehicle·NMC·EV traction module·Poland
Fiat E-Ducato battery module in crate

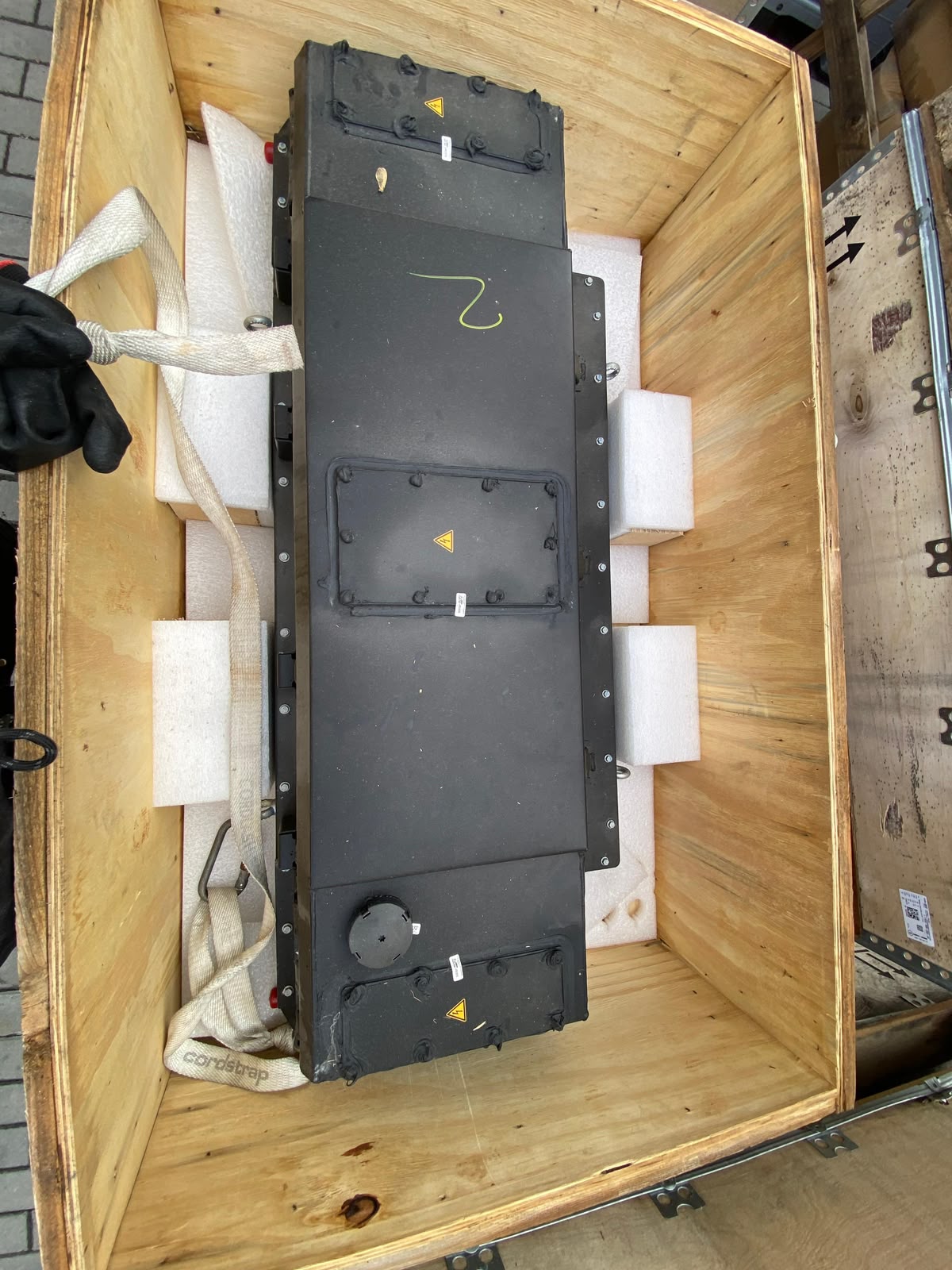

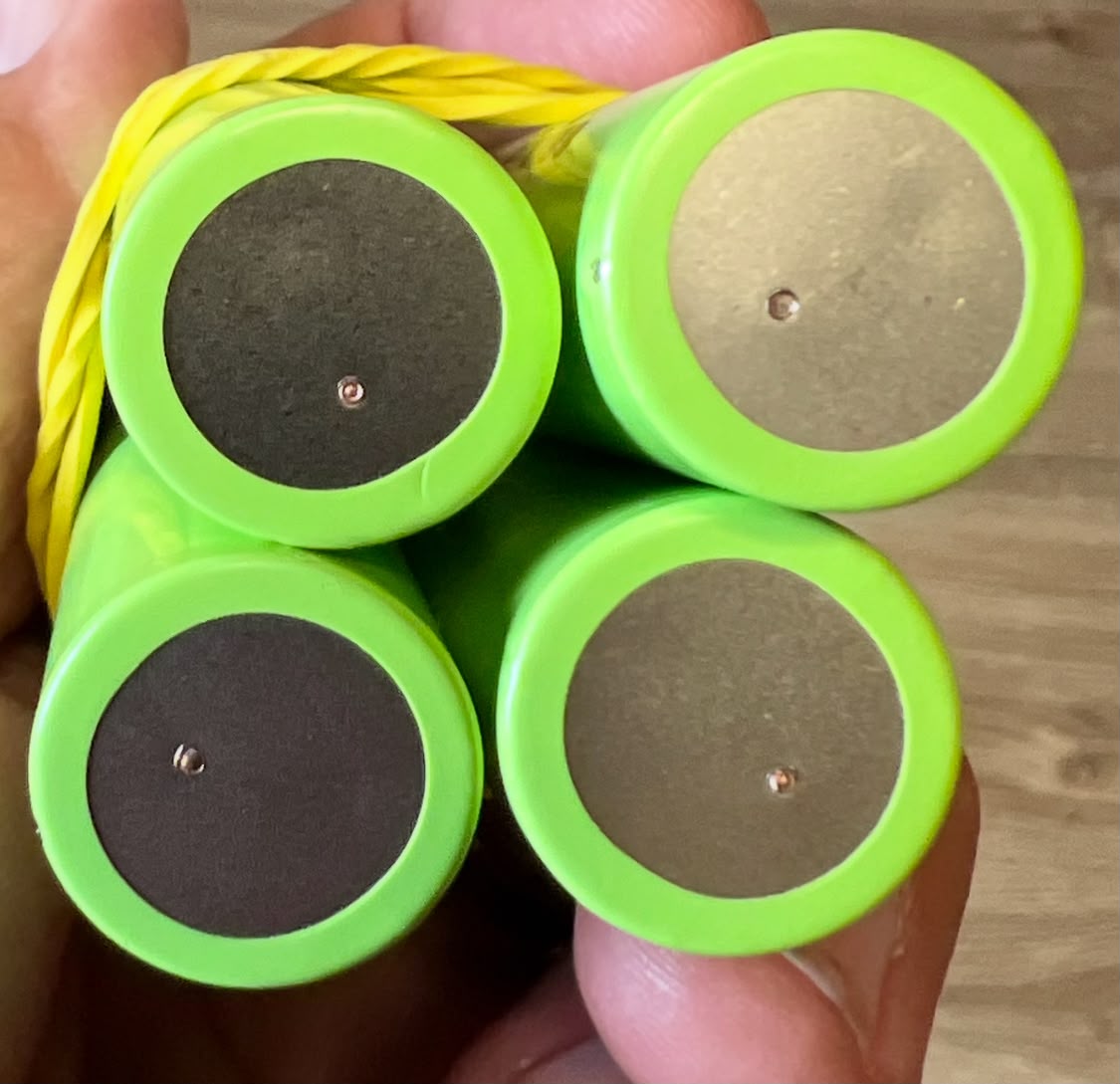

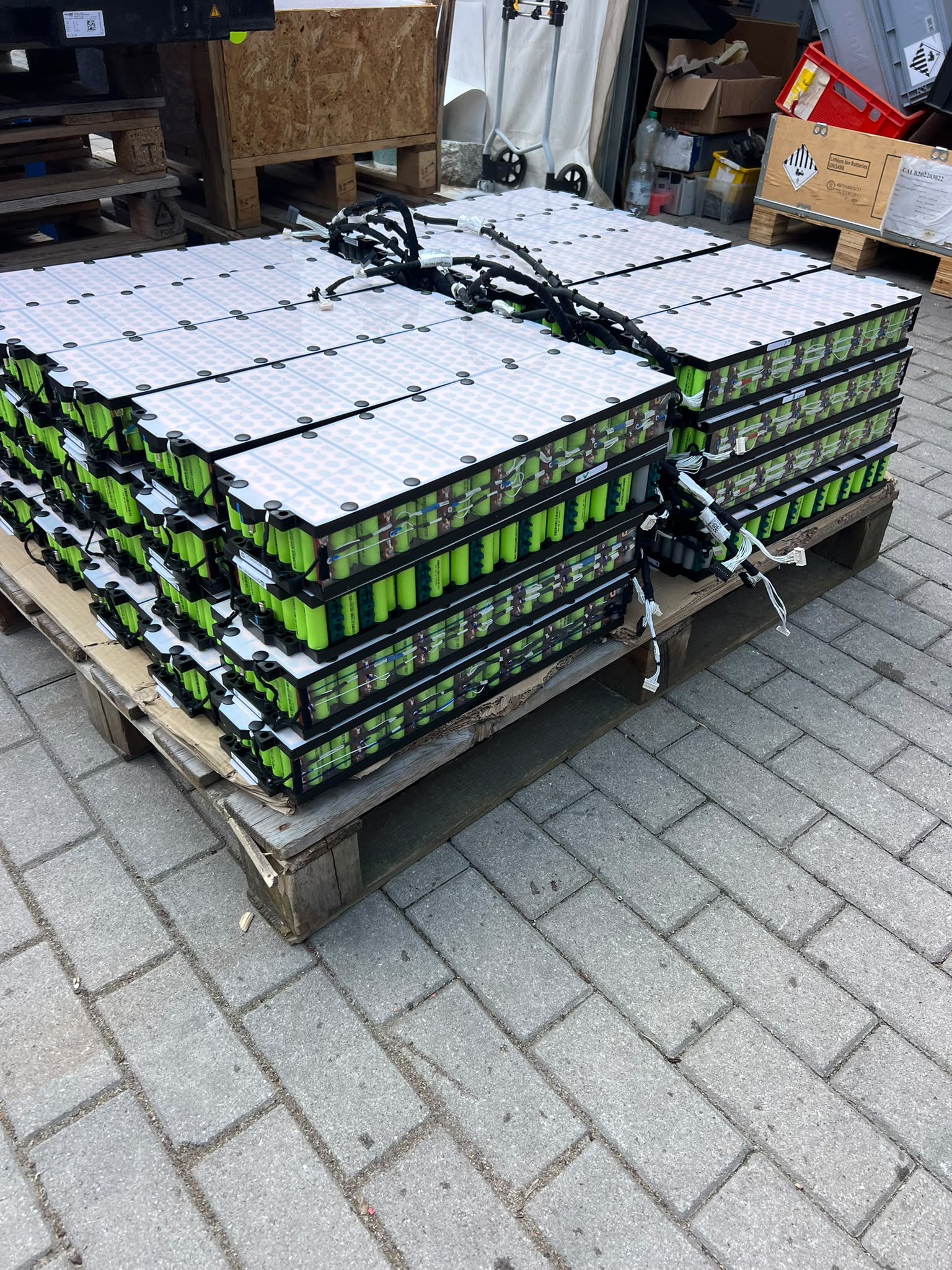

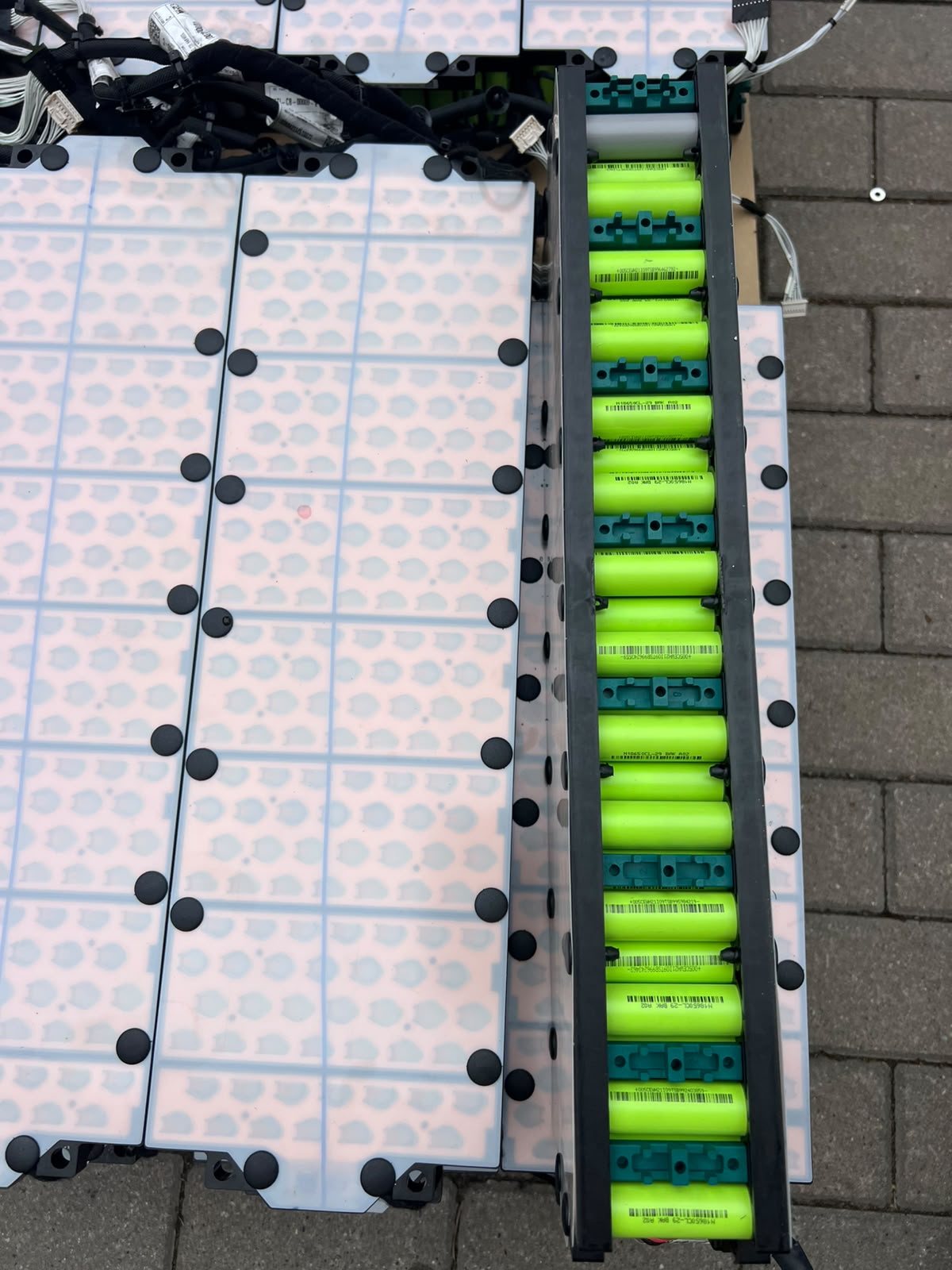

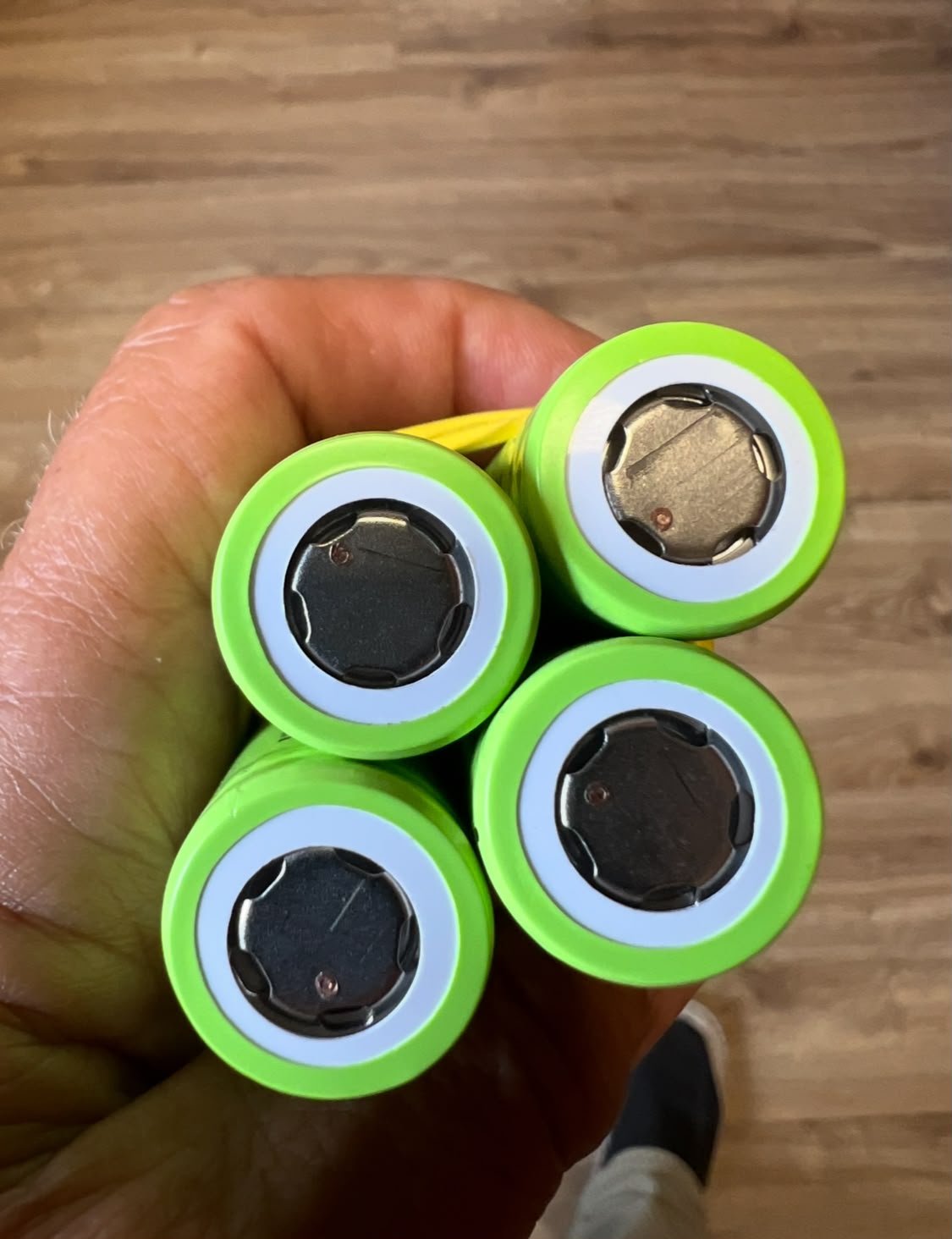

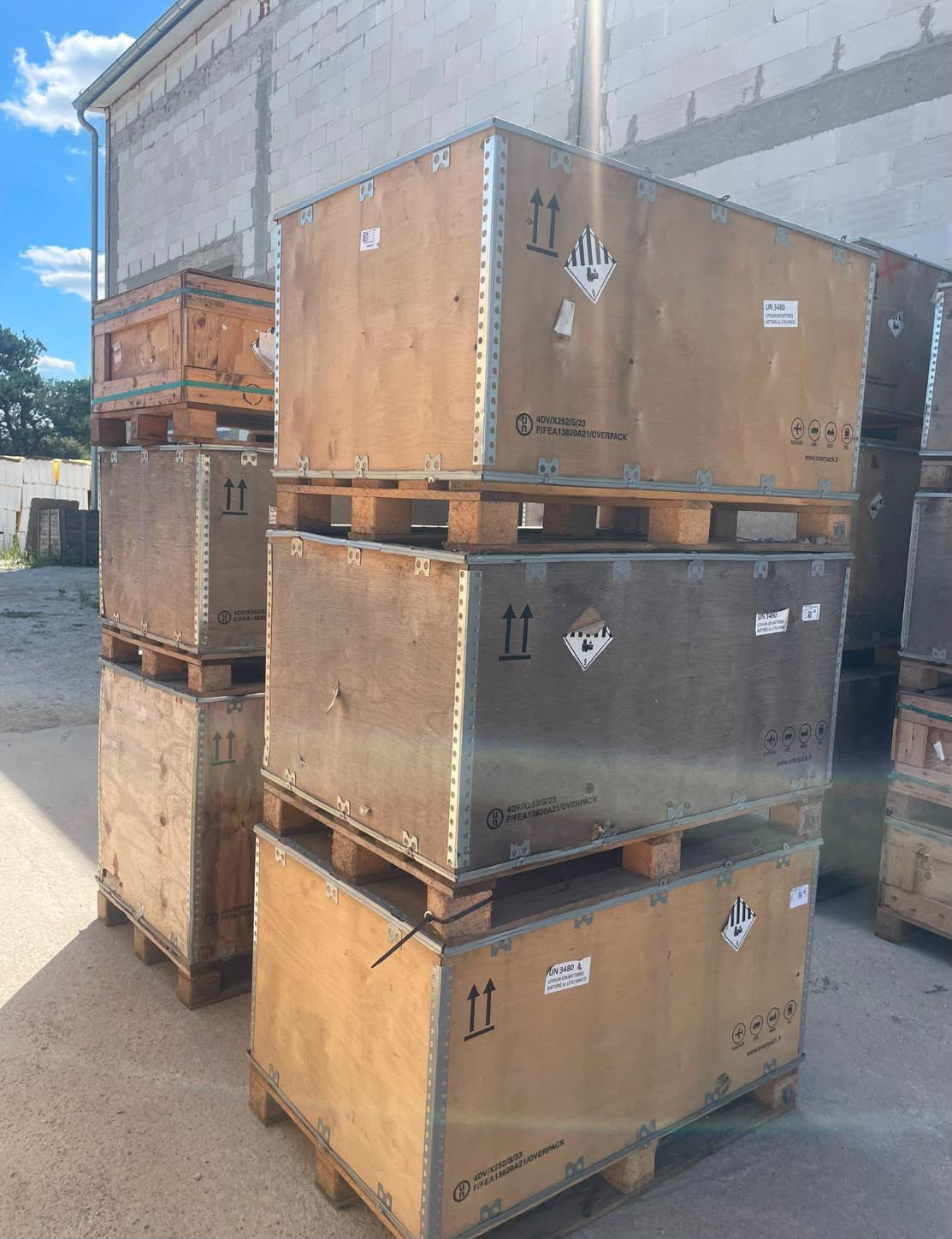

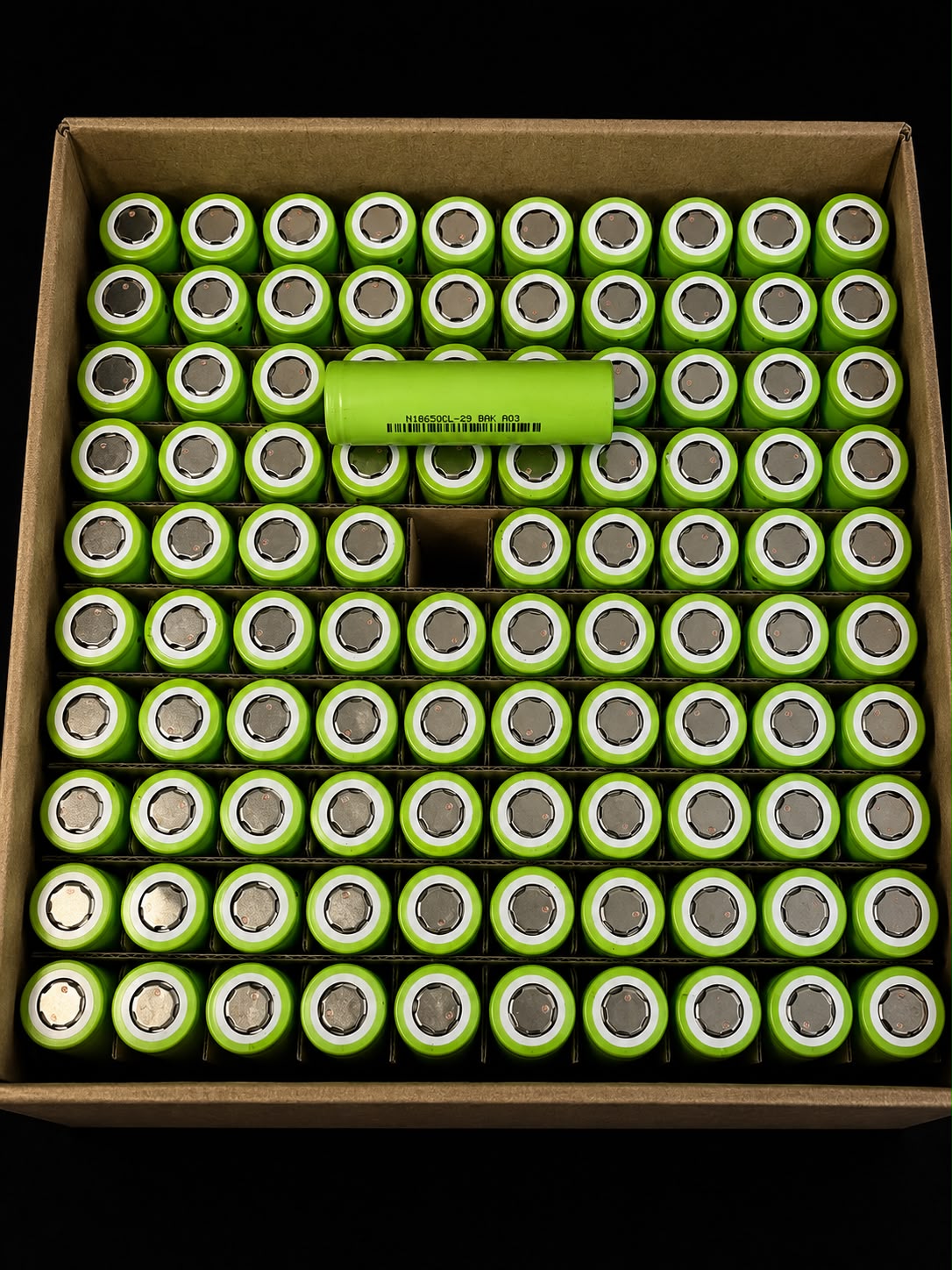

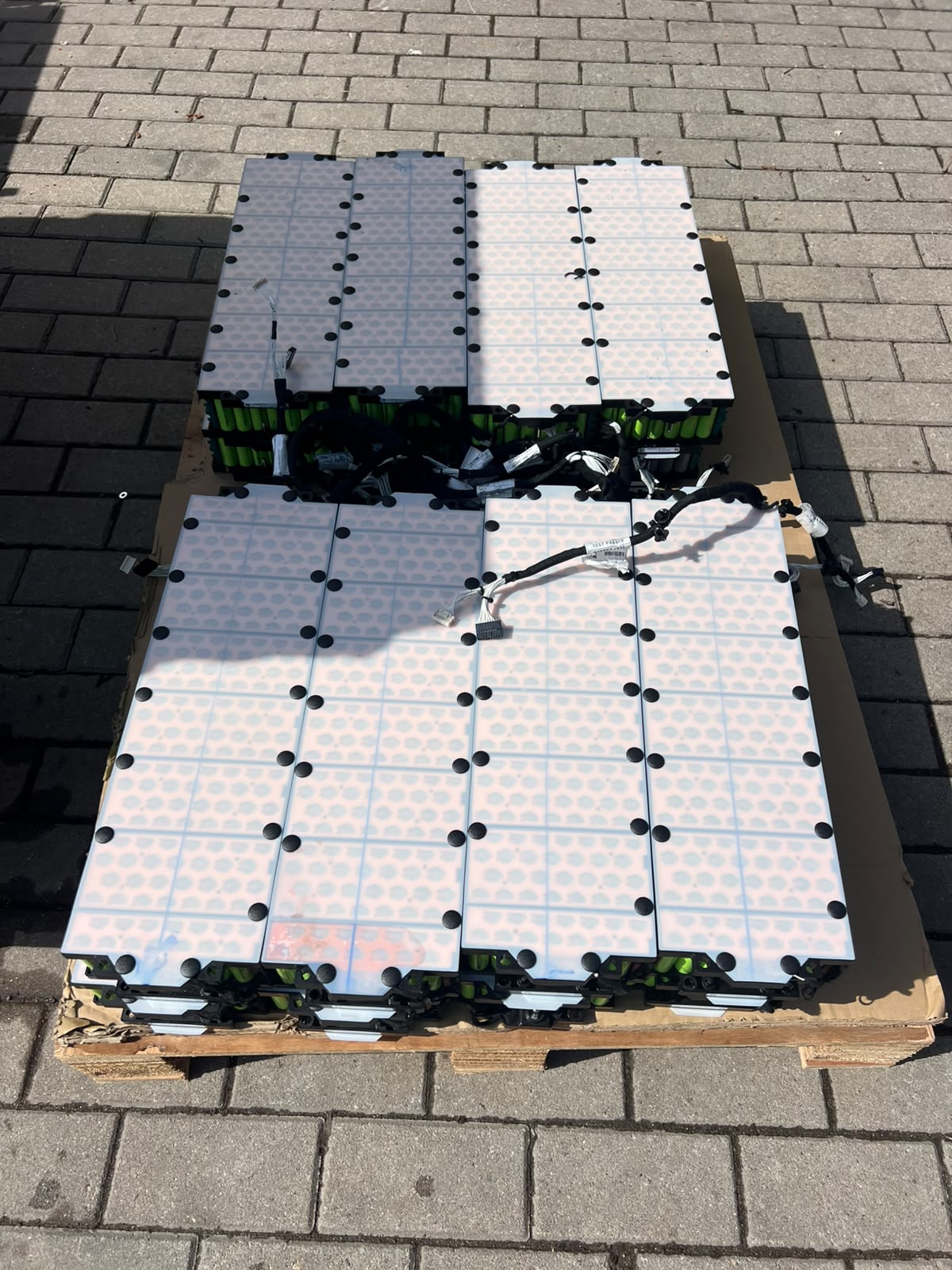

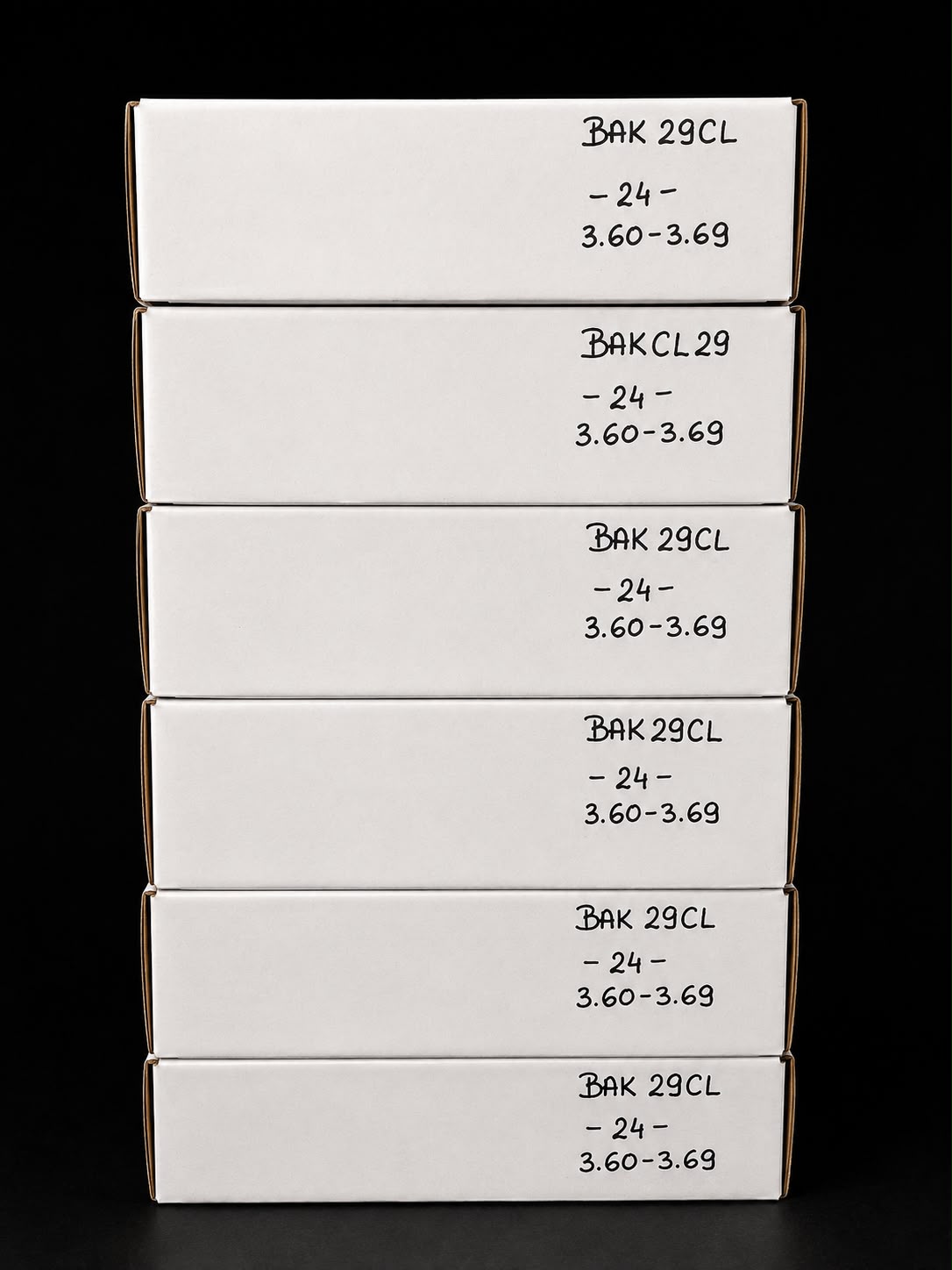

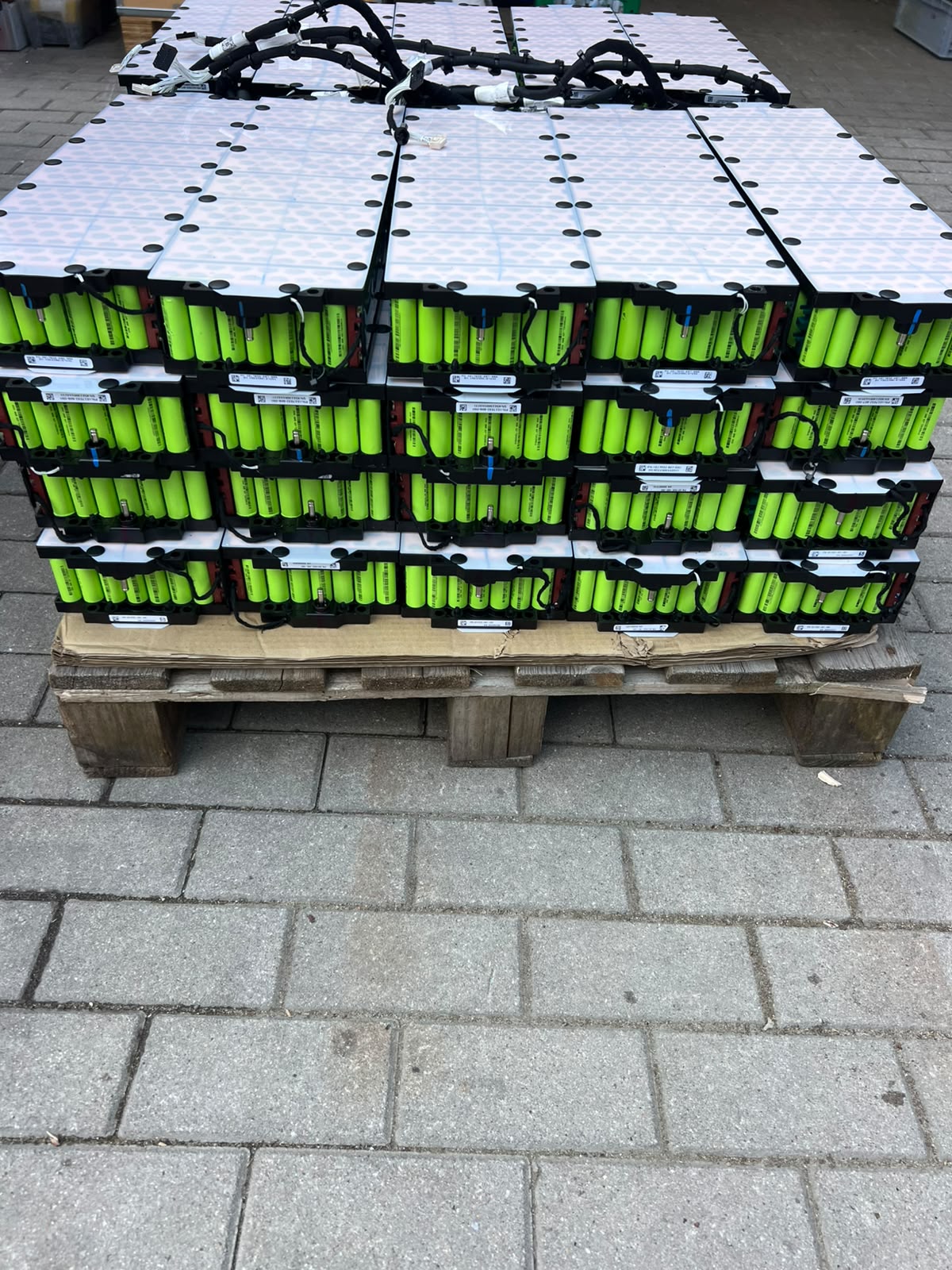

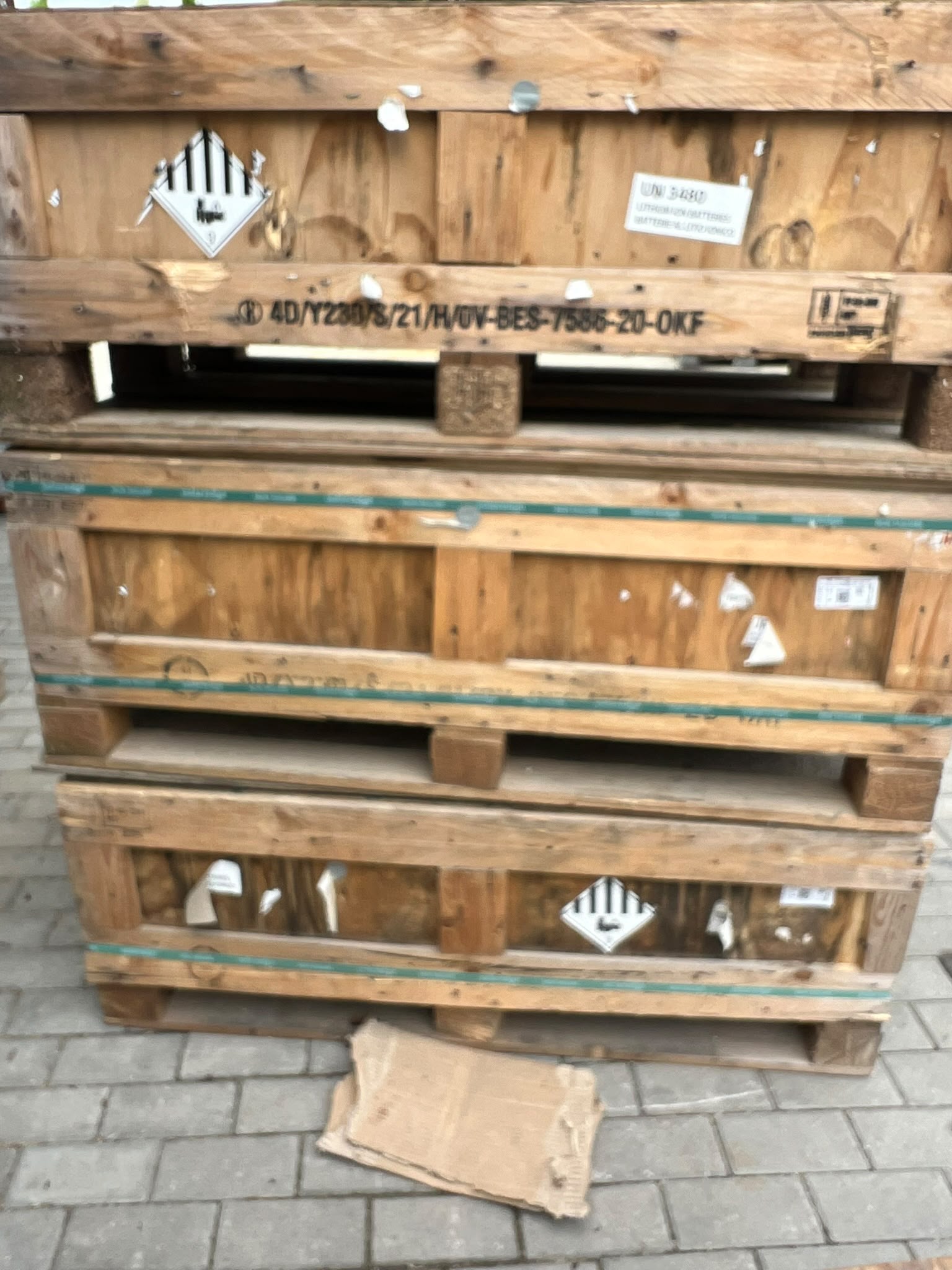

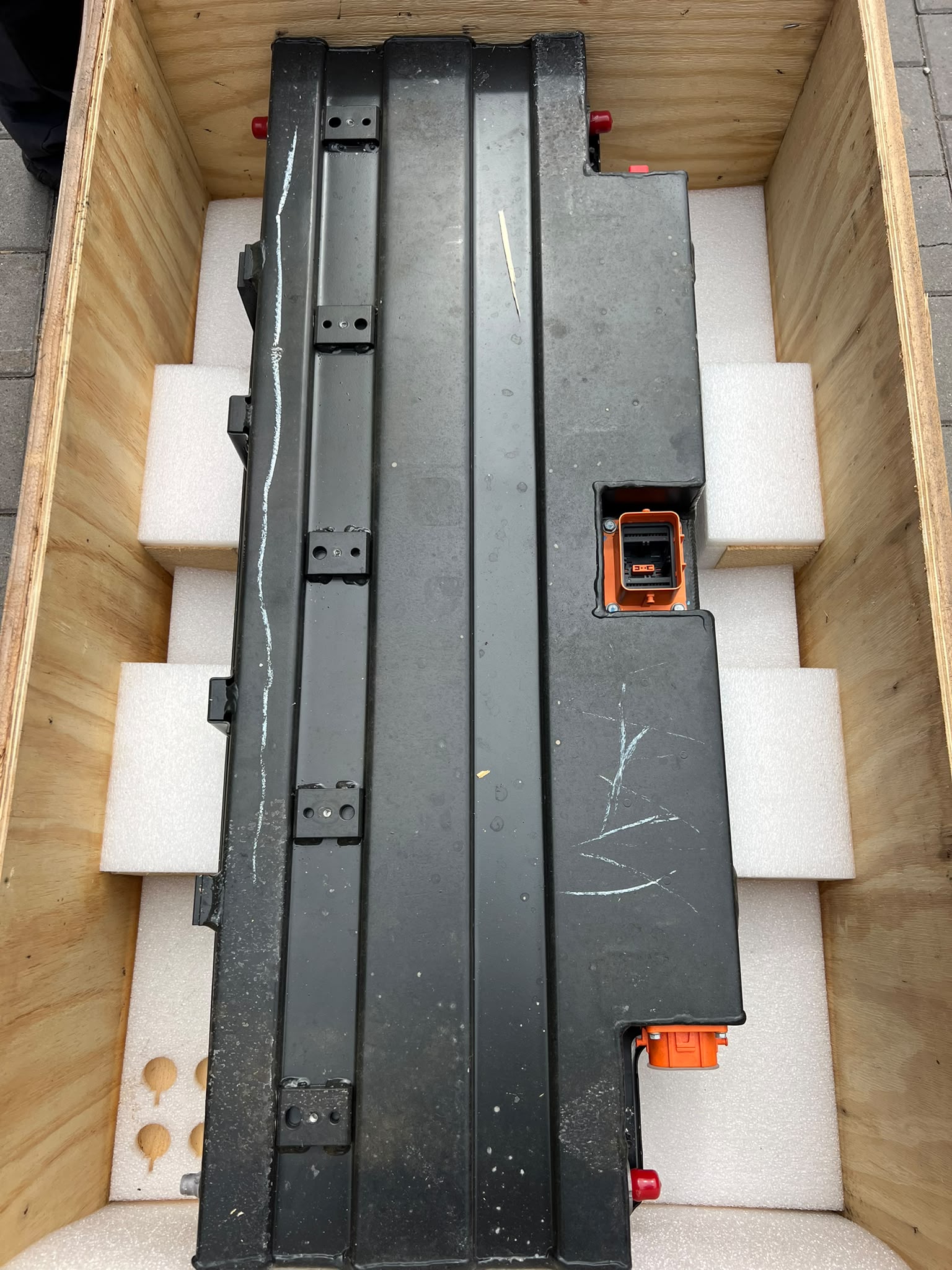

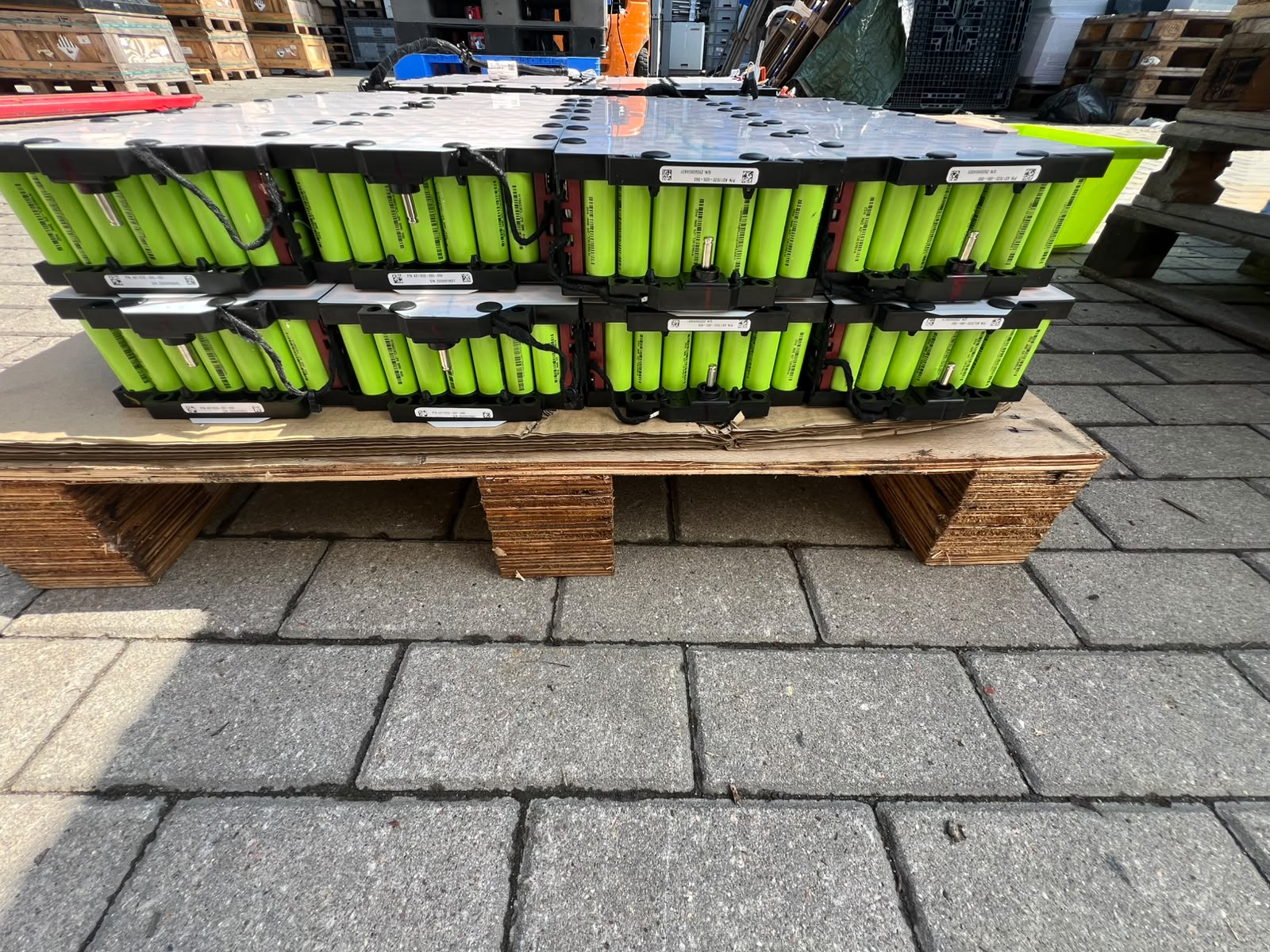

Opened module, cell blocks, side view 14S14P sub-module, side opened 14S14P sub-modules, stacked Opened module, cell blocks, top view Cell blocks, stacked BAK N18650CL-29 cells in tray Sorted cells, boxed by voltage bin Cell close-up, positive terminal Cell close-up, negative terminal Module in crate Module in crate, second view Module in crate, third view Crates with UN3480 marking, stacked Crates with UN3480 marking
15.8kWh
Energy / module
388V
Rated voltage / module
1,512
Cells / module
948kWh
Available lot

Traction battery modules from the Fiat E-Ducato electric van, removed from test-vehicle packs with very few cycles. Each module is a self-contained, full-voltage unit built from BAK N18650CL-29 cylindrical cells. Available as whole modules for second-life storage, as smaller sub-modules, or disassembled into sorted and tested cells.

Interested in this lot? Request the full documentation package and current pricing, or arrange a technical call - reach Cling directly:
Emailwilliam@clingsystems.com WhatsApp+46 76 327 33 43
WeChat - add Cling Systems on WeChat
WeChat · scan to add
01

Availability

Quantity available
60 modules · 948 kWh
Location
Poland
Hazmat class
UN3480, Lithium-ion batteries (Class 9)

Partial lots negotiable. Third-party pre-shipment inspection supported on request.

02

Condition

State
Used, ex-test-vehicle packs with very few cycles
03

Technical Specifications

Module
Nominal voltage
388 V
Nominal energy
15.8 kWh
Nominal capacity
40.6 Ah
Cell configuration
8 x 14S14P sub-modules · 1,512 active cells of 1,568 positions
Sub-module
14S14P, 1.97 kWh · 8 per module
Cooling
Liquid (fluid cooling/heating)
Cell (BAK N18650CL-29)
Format
Cylindrical 18650
Nominal voltage
3.6 V
Nominal capacity
2.9 Ah · 2.8 Ah min
Tested voltage
3.6 - 3.7 V
Tested internal resistance
23 - 25 mΩ
Energy density
213 Wh/kg (1C) · 225 Wh/kg (0.2C)
Cycle life
≥ 80% after 1,000 cycles · ≥ 90% after 500
Max charge current
2.75 A
Max discharge current
8.25 A
Weight
48 g
Operating temperature
Battery, max range
-20 to +60 °C
Cell charge range
0 to 45 °C
Cell discharge range
-20 to 60 °C
Dimensions (cell)
Diameter
18.35 mm
Height
64.85 mm
04

Documentation

Technical Datasheet
Module-level electrical and dimensional specification
Not available
UN38.3 Test Report
Transport classification test report, for qualified buyers
Not available
MSDS / SDS
Material Safety Data Sheet
Not available

Available documents are shared with qualified buyers on request.

Interested in this lot? Request the full documentation package and current pricing, or arrange a technical call - reach Cling directly:
Emailwilliam@clingsystems.com WhatsApp+46 76 327 33 43
WeChat - add Cling Systems on WeChat
WeChat · scan to add

Specifications are sourced from manufacturer references and seller-reported data and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
