Proterra H1-15
A liquid-cooled NMC traction pack from Proterra's H1-15 platform, built for heavy-duty electric buses and commercial vehicles, with CAN J1939 communication and a low-profile 175 mm housing. Tested to UN38.3 and ECE R100, and designed for up to 16 packs in parallel in stationary storage. Suited to vehicle repowering, second-life energy storage built on complete packs, or fleet spares.
Availability
- Quantity available
- 51 packs · 3.8 MWh
- Hazmat class
- UN3480, Lithium-ion batteries (Class 9)
Partial lots negotiable. Third-party pre-shipment inspection supported on request.
Condition
- State
- New
- Manufacturer
- Proterra
- Packaging

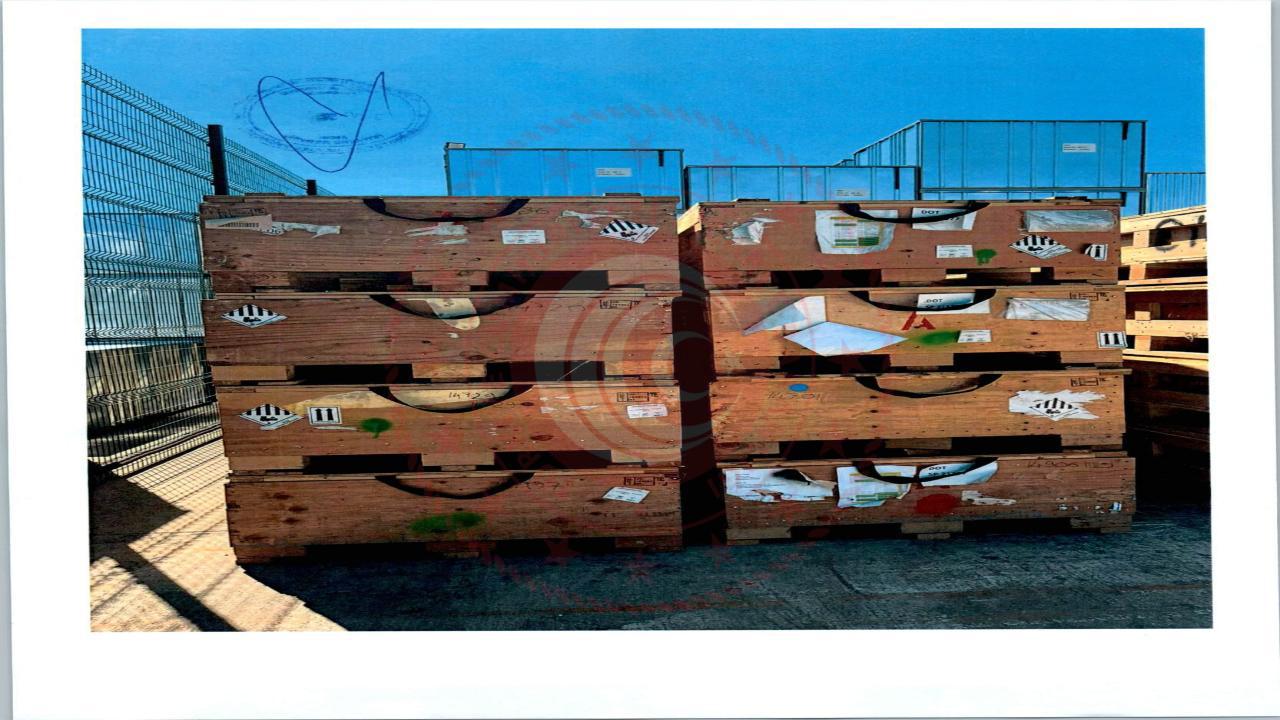

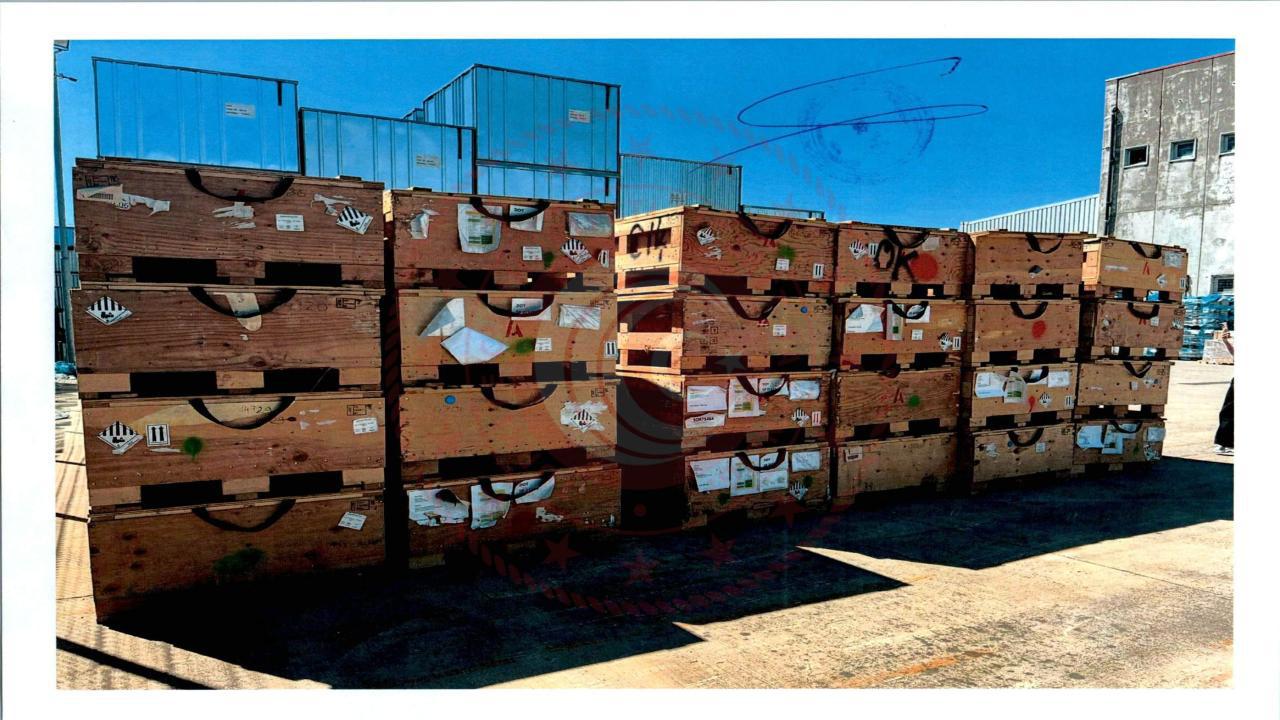

- Individual wooden crate, one pack per crate
Technical Specifications
- Nominal energy
- 75 kWh
- Nominal voltage
- 660 V
- Low-voltage supply
- 12 V / 24 V
- Continuous charge
- 0.5C · peak 1.0C, 300 s
- Continuous discharge
- 1.3C · peak 3.0C, 60 s
- Continuous regen
- 0.5C · peak 1.0C, 60 s
- Battery management
- Integrated pack BMS, included
- Communication
- CAN J1939 · DM1-capable diagnostics
- Cooling
- Liquid, 50/50 water-ethylene glycol
- Ingress protection
- IP6K9K
- ESS configuration
- Up to 16 packs in parallel
- Standards
- UN38.3, ECE R100.03, SAE J2929, SAE J2464, ISO 20653, IEC 60068-2-1
- Ambient range
- -30 to +55 °C
- Length
- 2,802 mm
- Width
- 620 mm
- Height
- 175 mm
Documentation
Available documents are shared with qualified buyers on request.
Specifications are believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
