Jeep Renegade 4xe
The complete high-voltage battery pack for the Jeep Renegade 4xe and Compass 4xe plug-in hybrids, built by LG Chem with 96 LG pouch cells and an integrated battery management system, contactor unit and power inverter module. Brand new and never installed, in original OEM packaging. Suited to service and replacement supply, remanufacturing programmes, or as a source of automotive-grade NMC capacity for stationary storage builds.
Availability
- Quantity available
- 3,400 packs · 38.8 MWh
- Location
- Poland
- Hazmat class
- UN3480, Lithium-ion batteries (Class 9)
Partial lots negotiable. Third-party pre-shipment inspection supported on request.
Condition
- State
- New, never installed in a vehicle
- Production date
- January 2024
- Manufacturer
- LG Chem · pack and cells

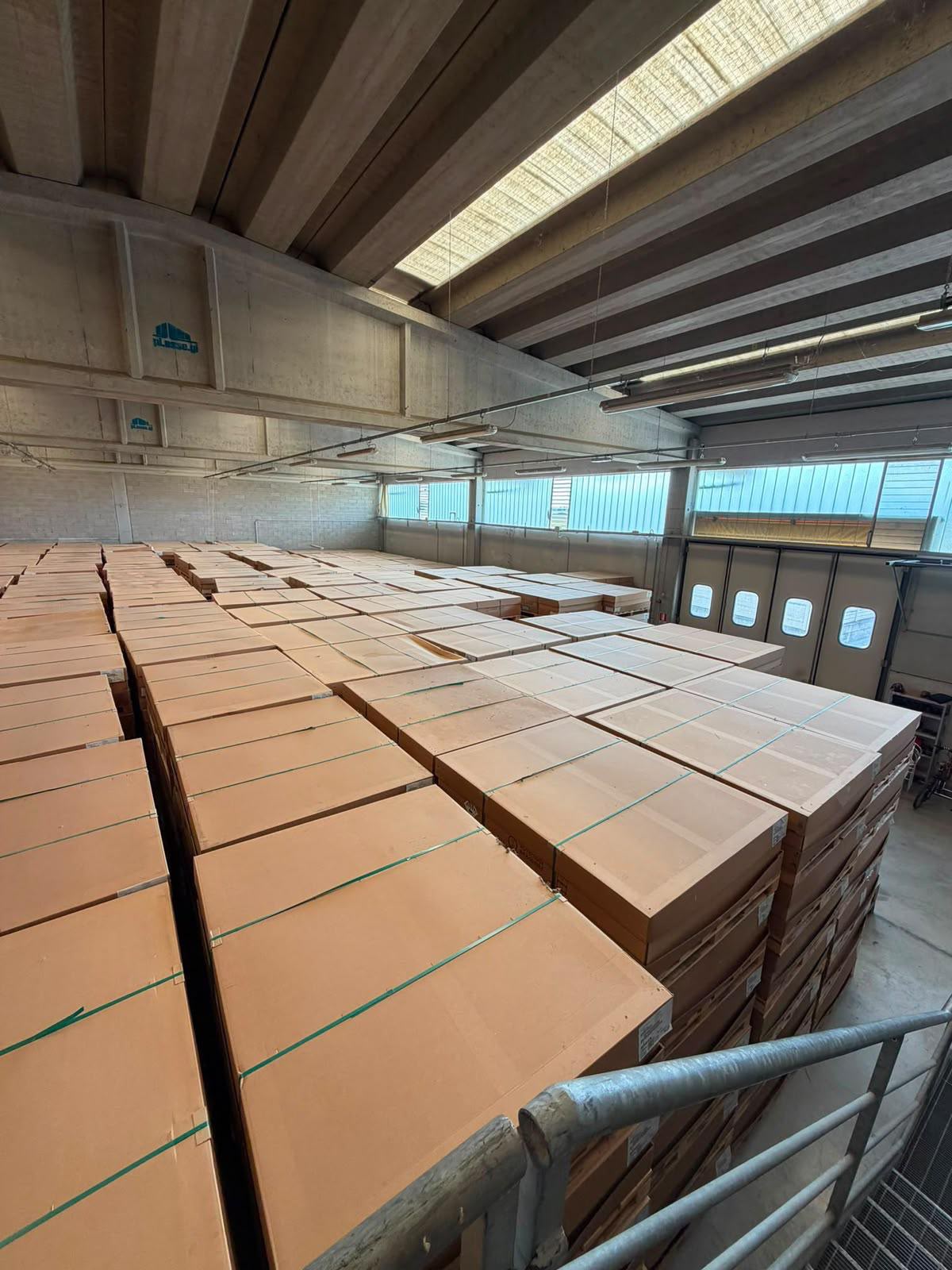

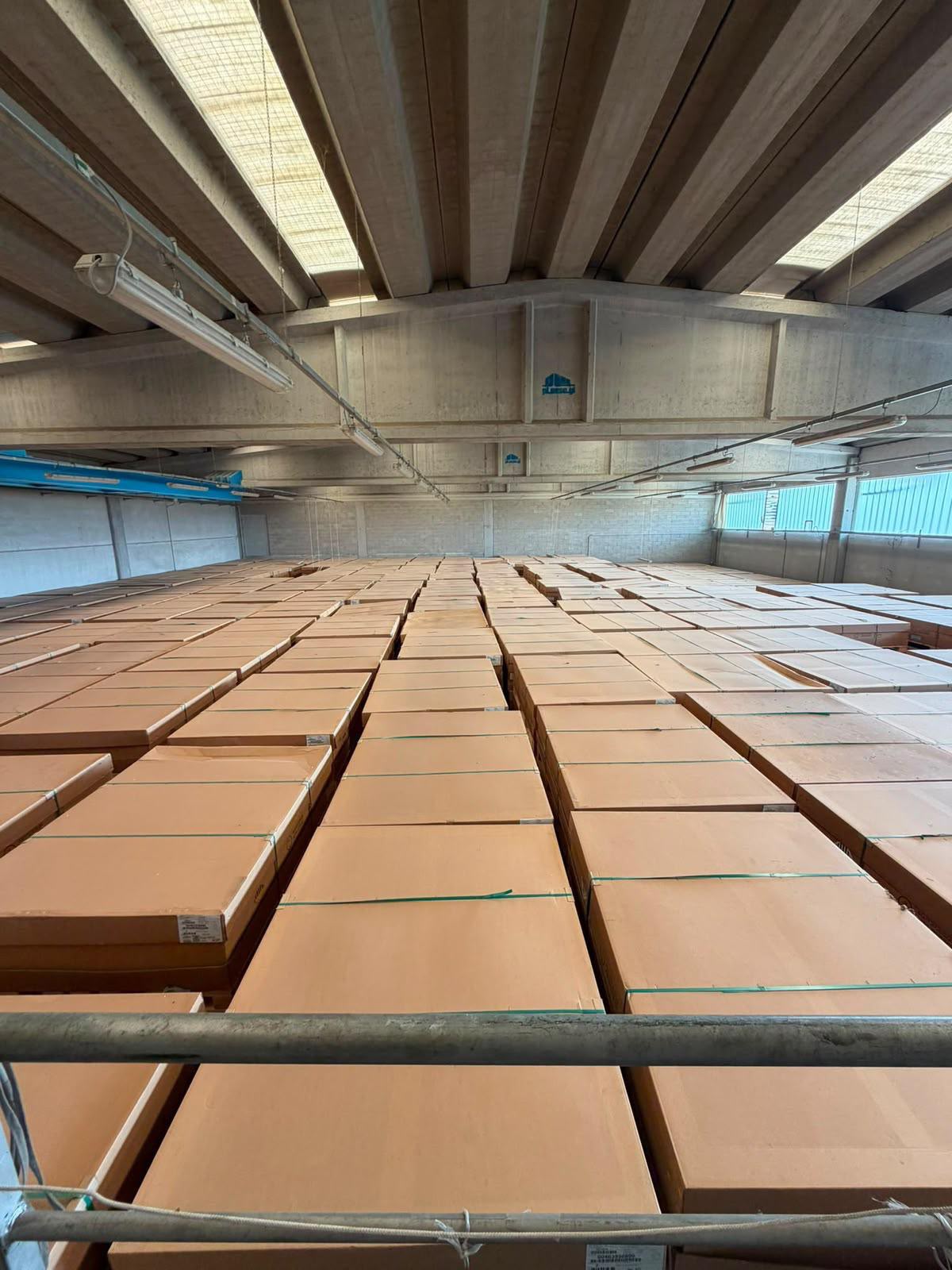

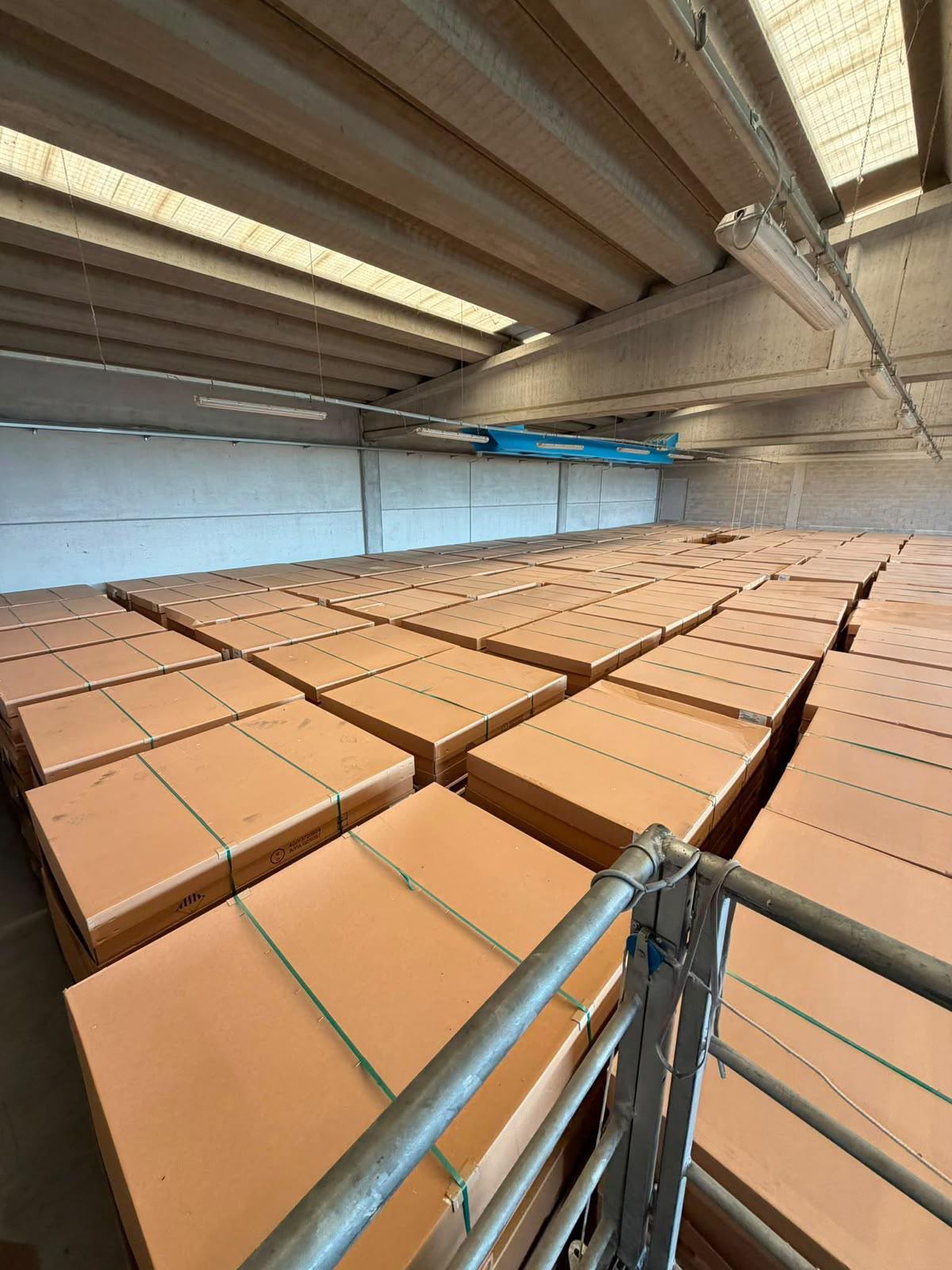

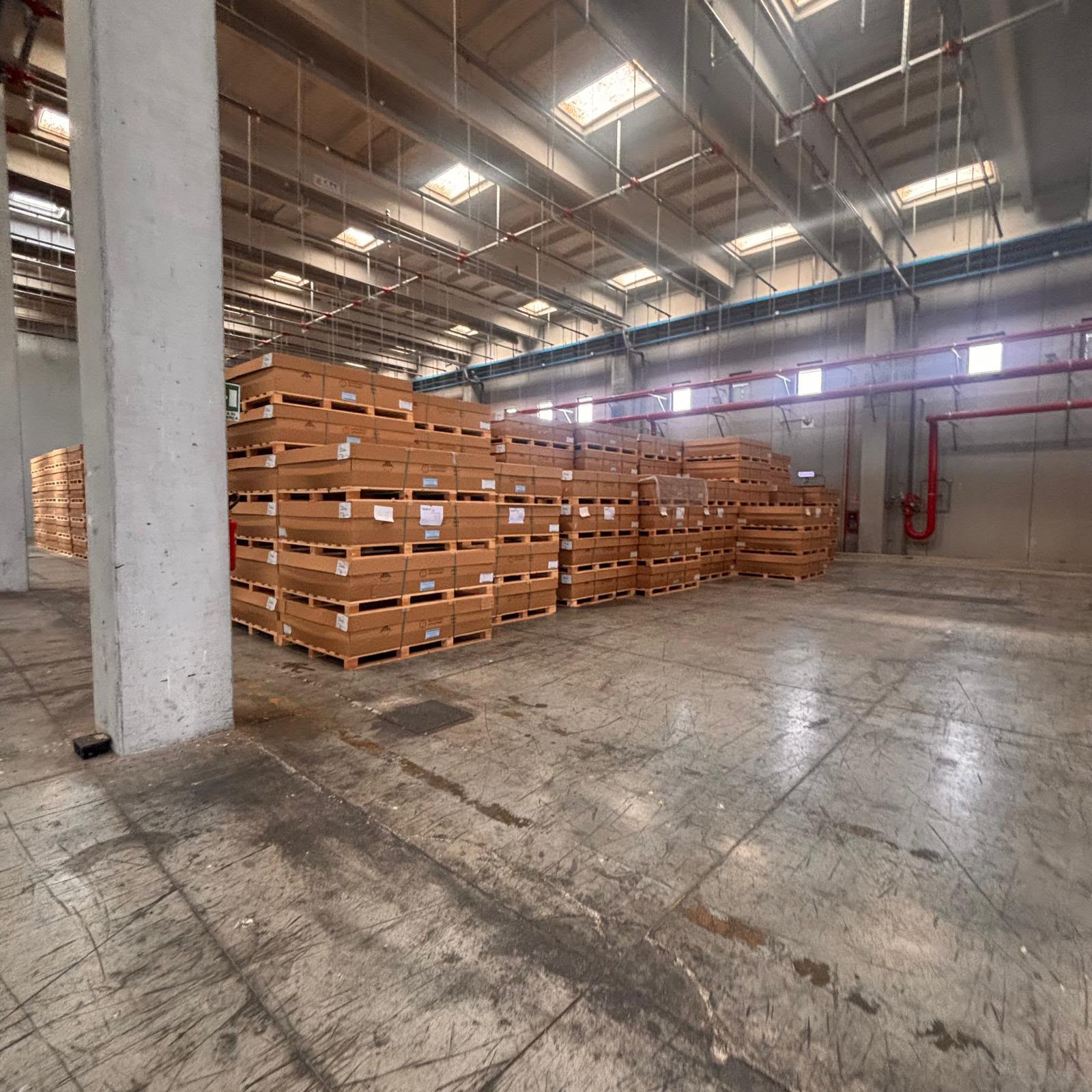

- Storage

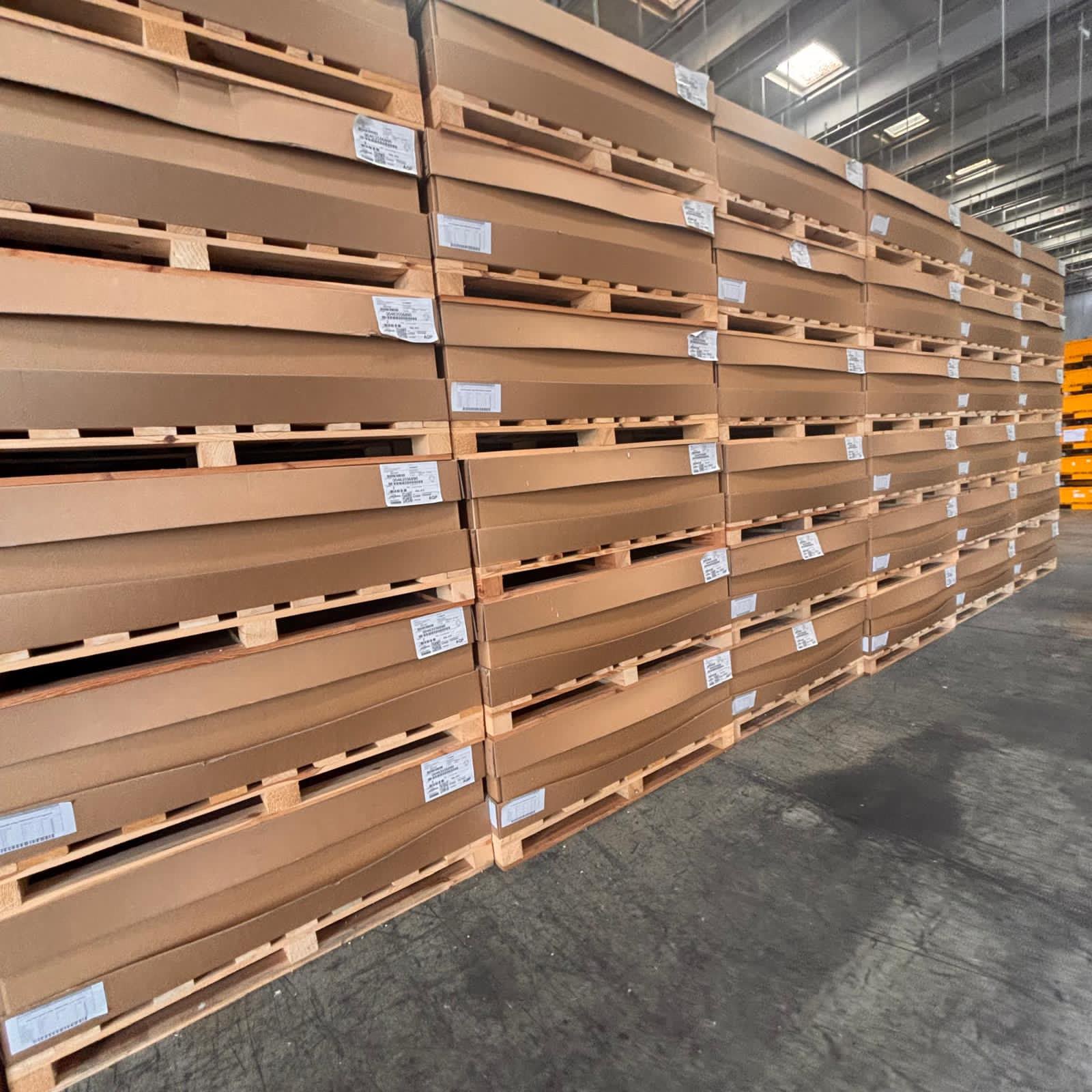

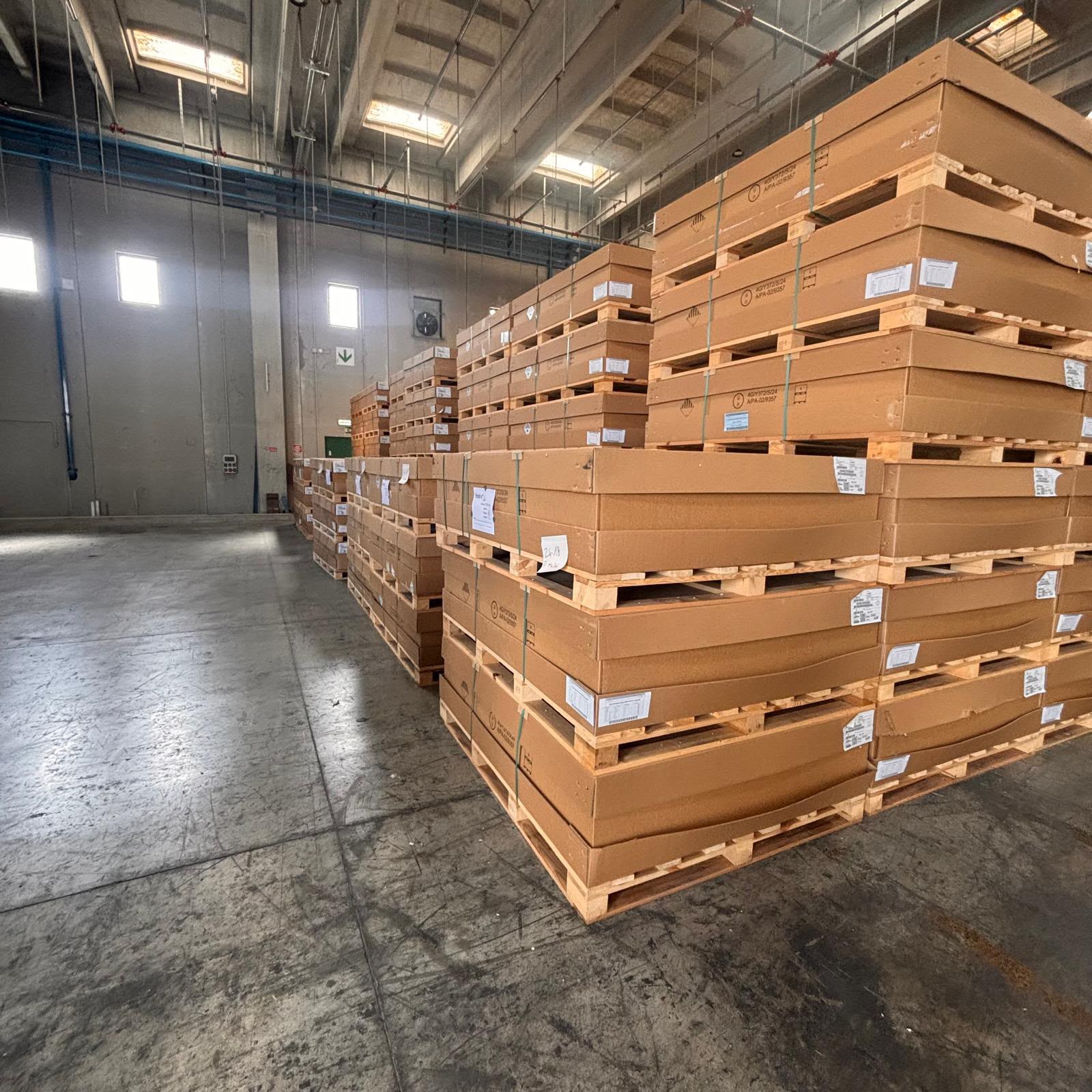

- Indoor, in original OEM boxes

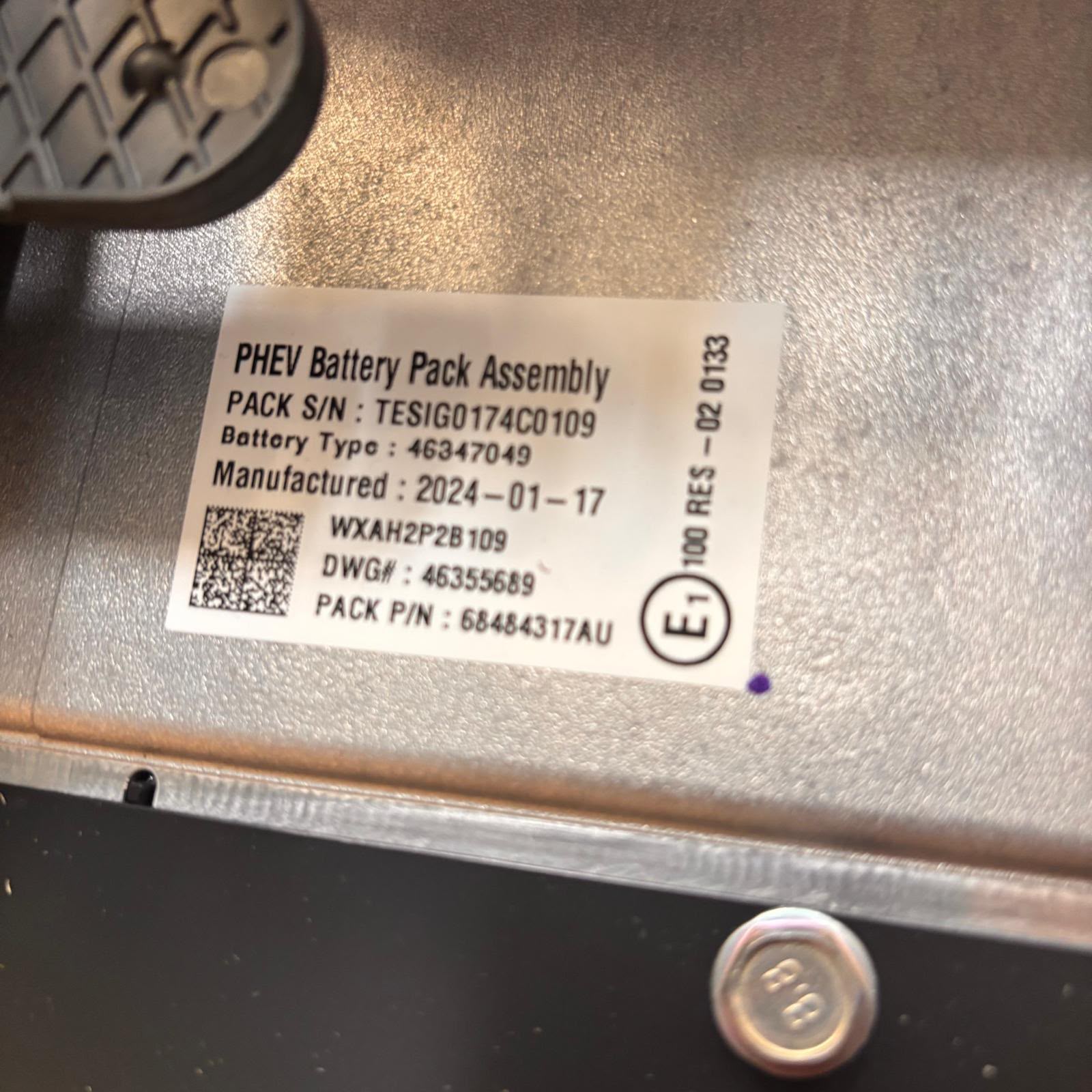

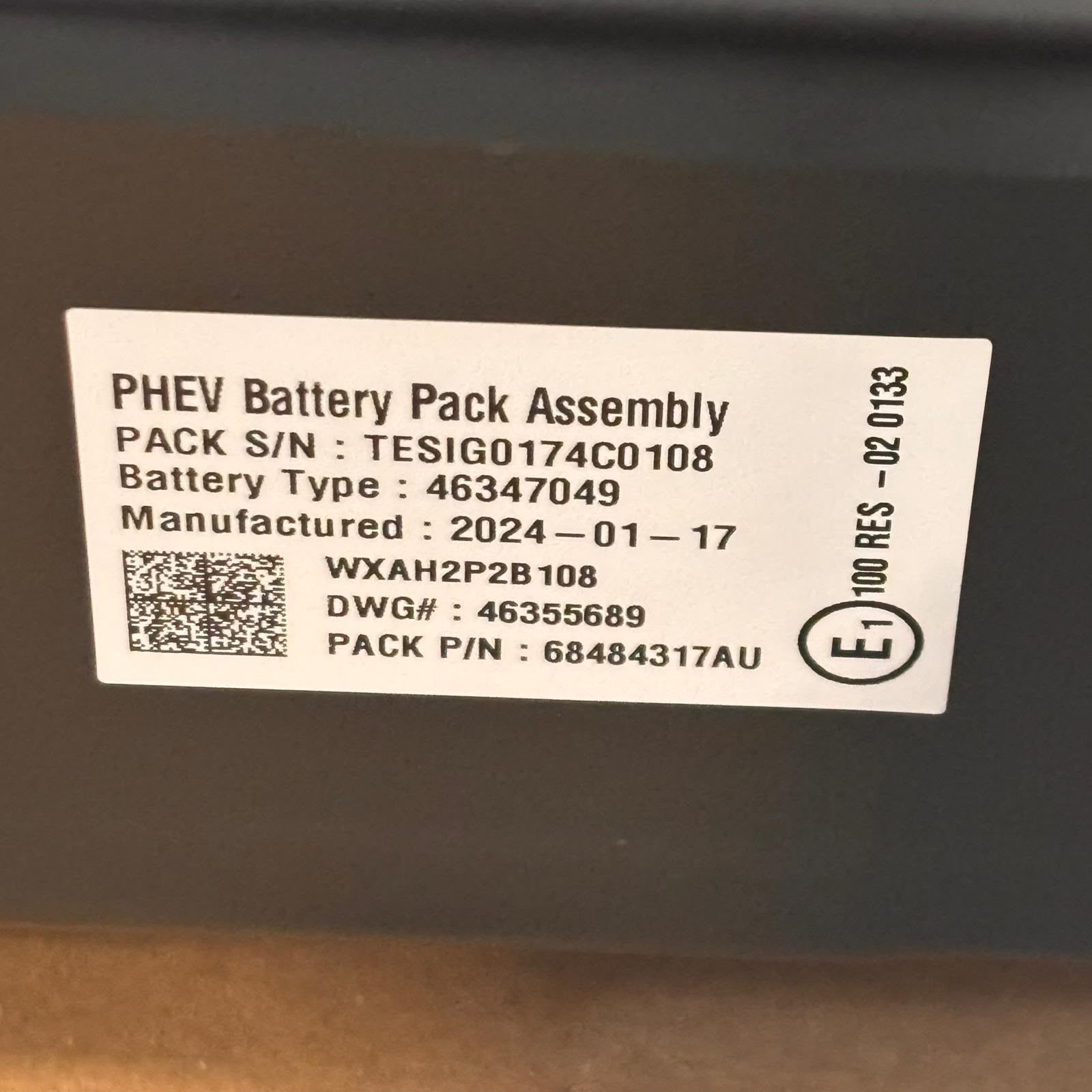

- Traceability
- Individual pack serial numbers on pack labels
Technical Specifications
- Nominal energy
- 11.4 kWh per pack
- Usable energy
- 9.1 kWh · 16-97% SOC window
- Nominal voltage
- 355 V
- Operating voltage
- 260-408 V
- Peak power
- 50 kW discharge / 30 kW charge · 10 s

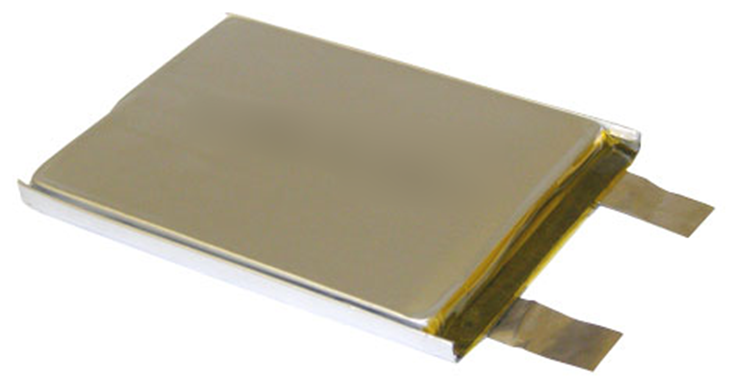

- Cell
- LG Chem P33 pouch, 33 Ah · 3.7 V nominal, 2.7-4.15 V
- Cell energy
- 122.1 Wh · 348 Wh/L
- Cell dimensions
- 101 × 266 × 12.7 mm · W × H × D
- Cell weight
- 554 g
- Cathode / anode
- NMC622 / graphite · 60% Ni, 20% Mn, 20% Co
- Pack configuration
- 96s1p · 96 cells in 8 modules

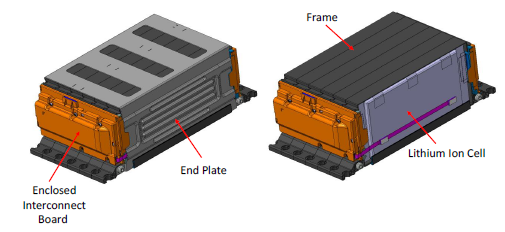

- Module
- 12s1p, 1.47 kWh · 12 cells per module
- Module voltage
- 44.4 V nominal · 32.4-49.8 V
- Module size / weight
- approx. 160 × 300 × 180 mm, approx. 10 kg · OEM preliminary figures
- Battery management
- Battery pack control module, CAN communication
- Power distribution
- Main and pre-charge contactors, HV fuses, current sensors
- Inverter
- Power inverter module integrated in pack
- Thermal
- Refrigerant cold plates with heater pads
- Operating range
- -30 to +55 °C
- Dimensions
- 1723 × 884 × 359 mm · overall envelope
- Weight
- 134 kg
- Pack part number
- 68484317AU
- Battery type
- 46347049
- Drawing number
- 46355689
- Type approval
- ECE R100 · E1 100RES-02 0133

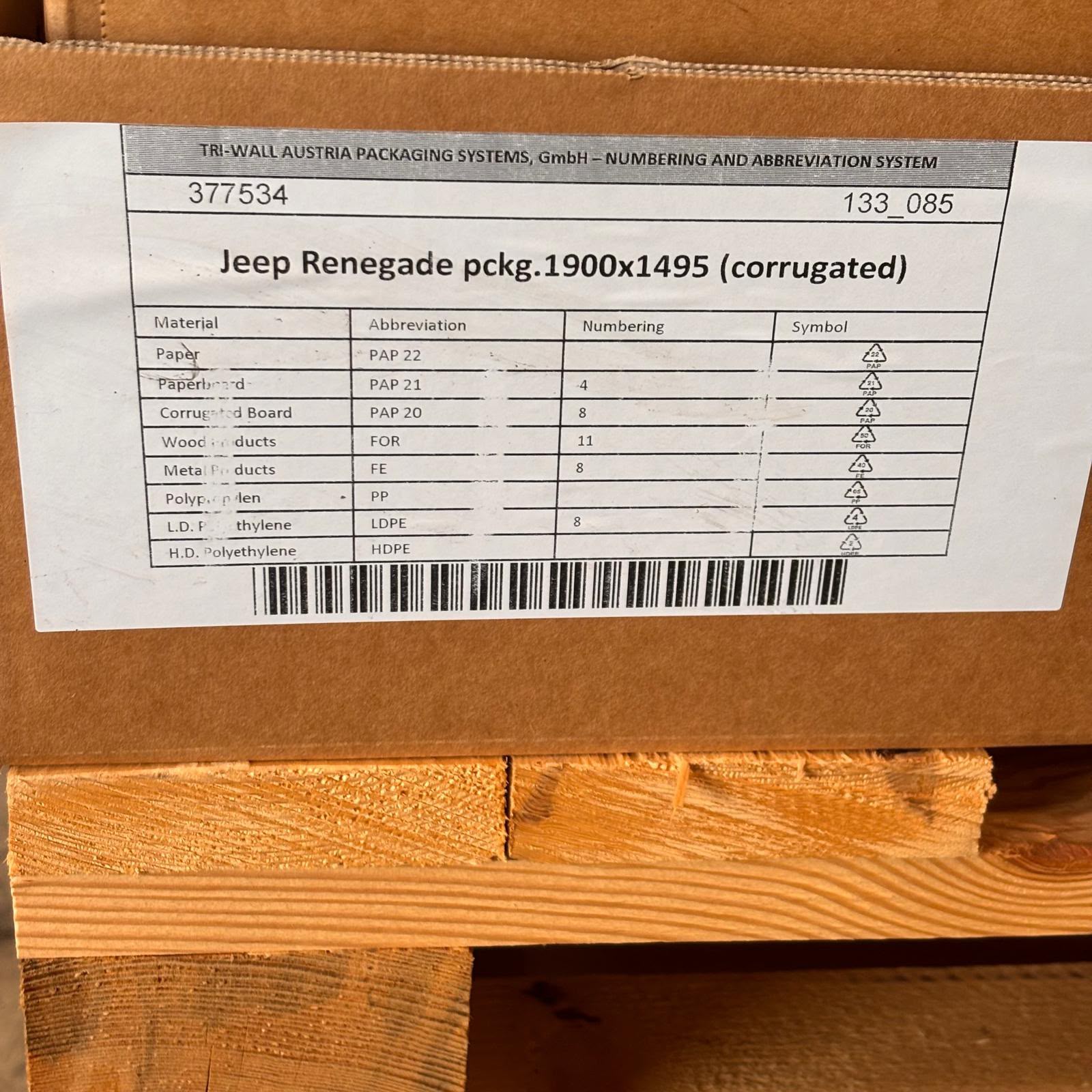

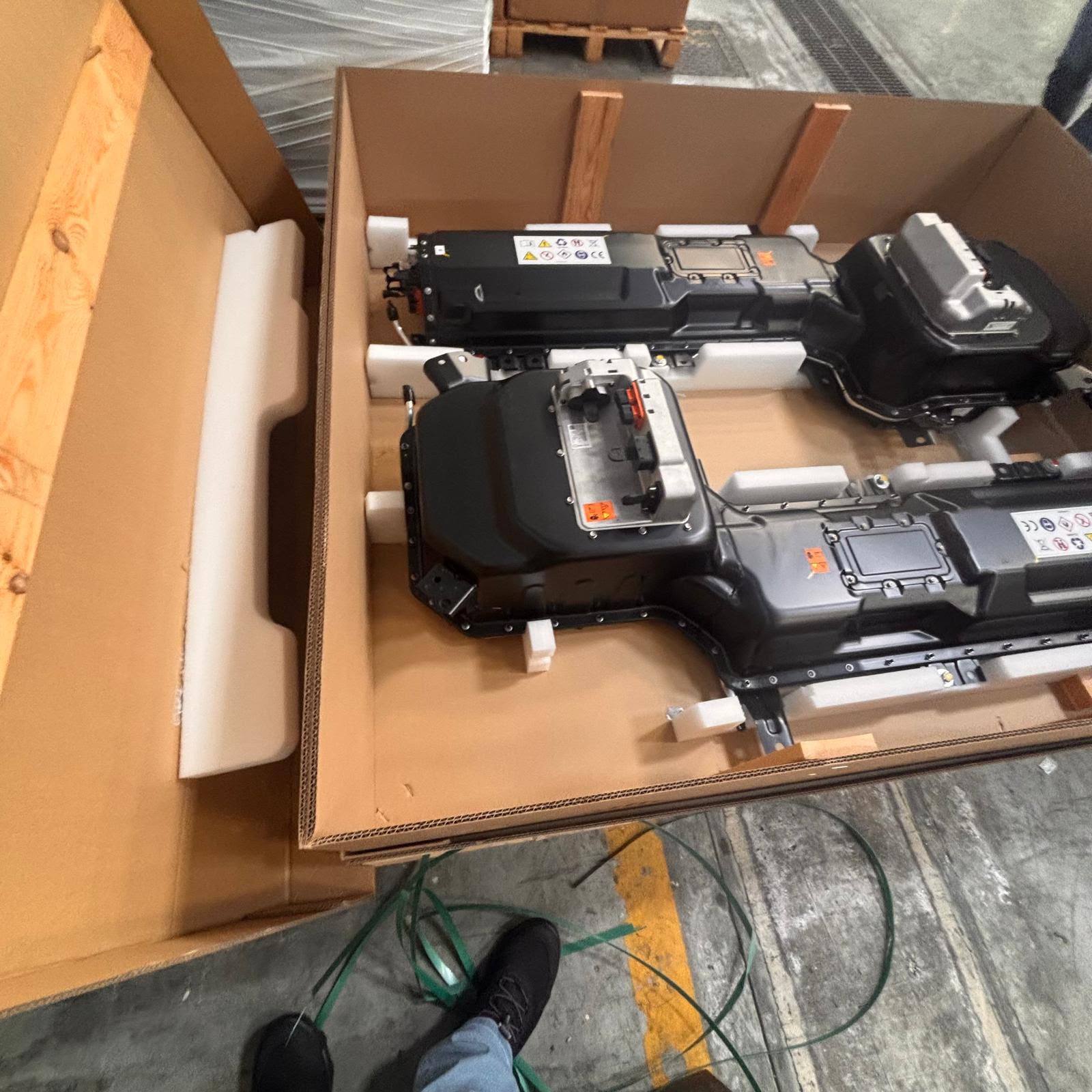

- Box
- Corrugated box on wooden pallet · 1900 × 1495 mm

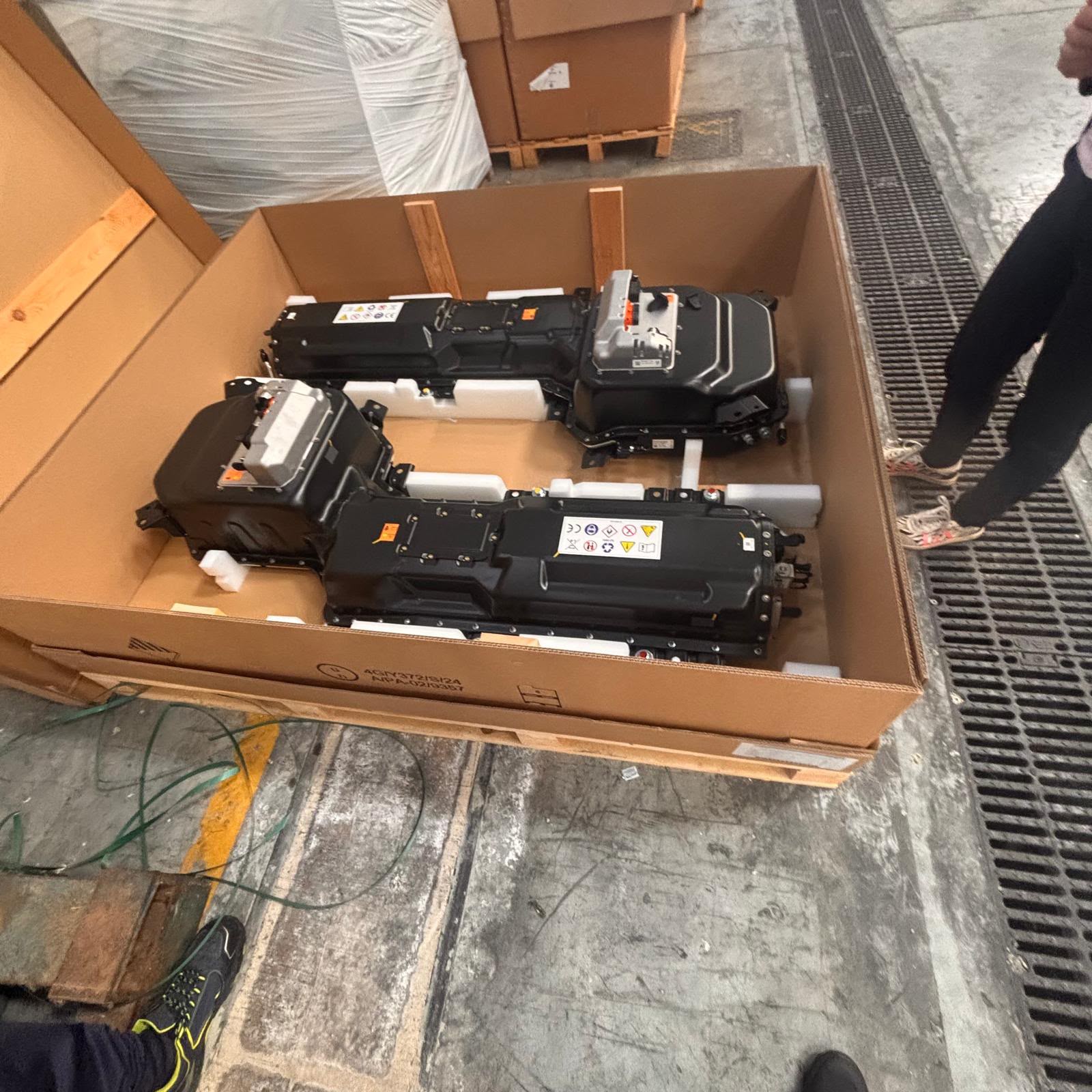

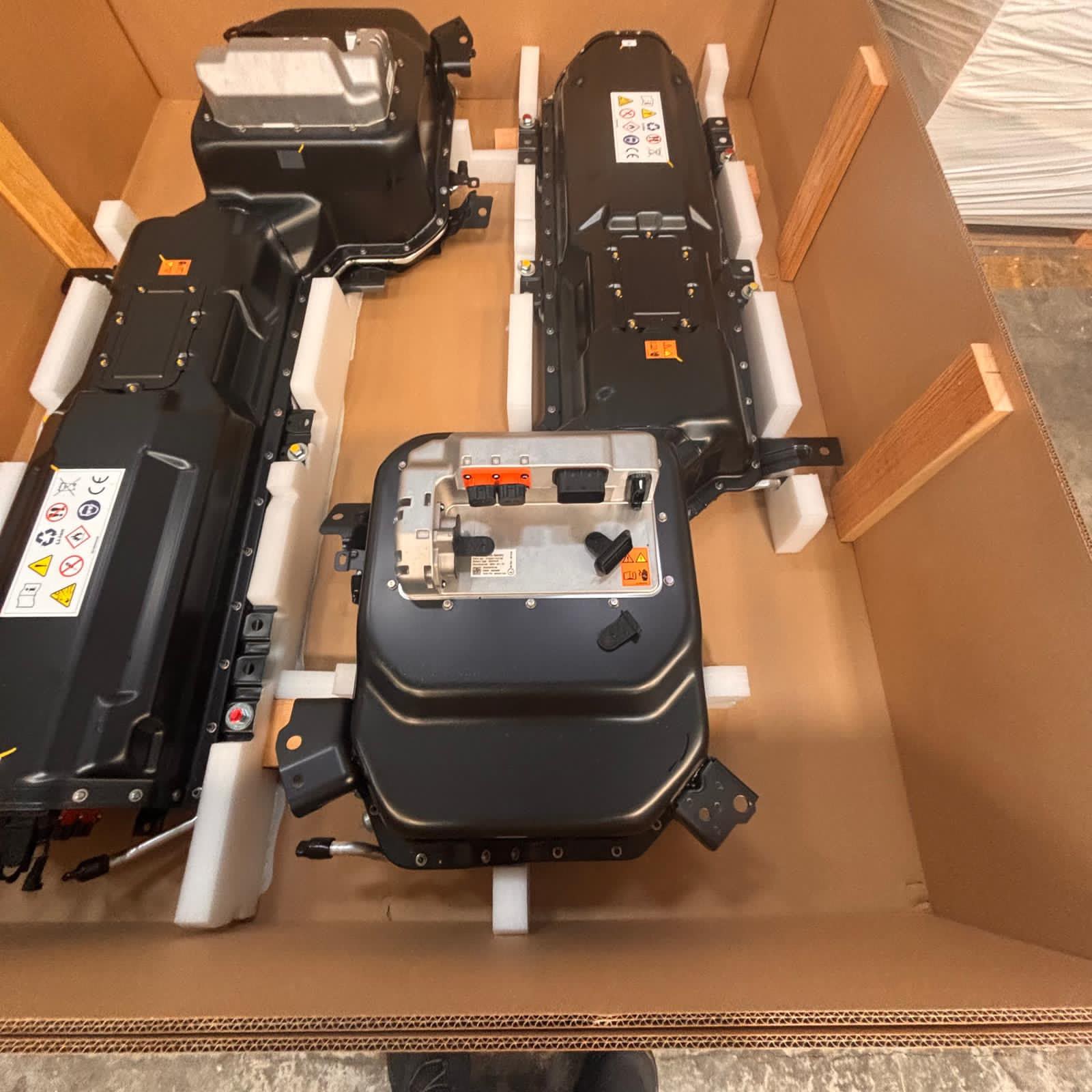

- Units per box
- 2 packs, foam blocking · 1,700 boxes
Documentation
Available documents are shared with qualified buyers on request.
Specifications are sourced from the manufacturer documentation and OEM pack labels and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
