CATL Qilin NCM Prismatic Cell
The CATL Qilin is a large-format prismatic NMC cell from CATL's CTP 3.0 platform, delivering 148.5 Ah at 3.7 V nominal — approximately 549 Wh per cell. With a low internal resistance of ~0.3 mΩ and a compact 44 × 194 × 114 mm prismatic profile, these cells are well suited to high-density module and pack builds for electric vehicles, energy storage systems, and industrial equipment.
Availability
- Quantity available
- 500,000 cells (≈ 274.5 MWh total)
- Total energy
- 274.5 MWh
- Location
- China
- Status
- Available inventory
- Partial lots
- Minimum quantities subject to negotiation
- Pre-shipment inspection
- Third-party inspection available on request
- Import compliance
- Meets EU import requirements
- Hazmat class
- UN3480 — Lithium-ion batteries (Class 9)
Condition
- State
- New production stock
- Manufacturer
- CATL — manufactured in China
- Traceability

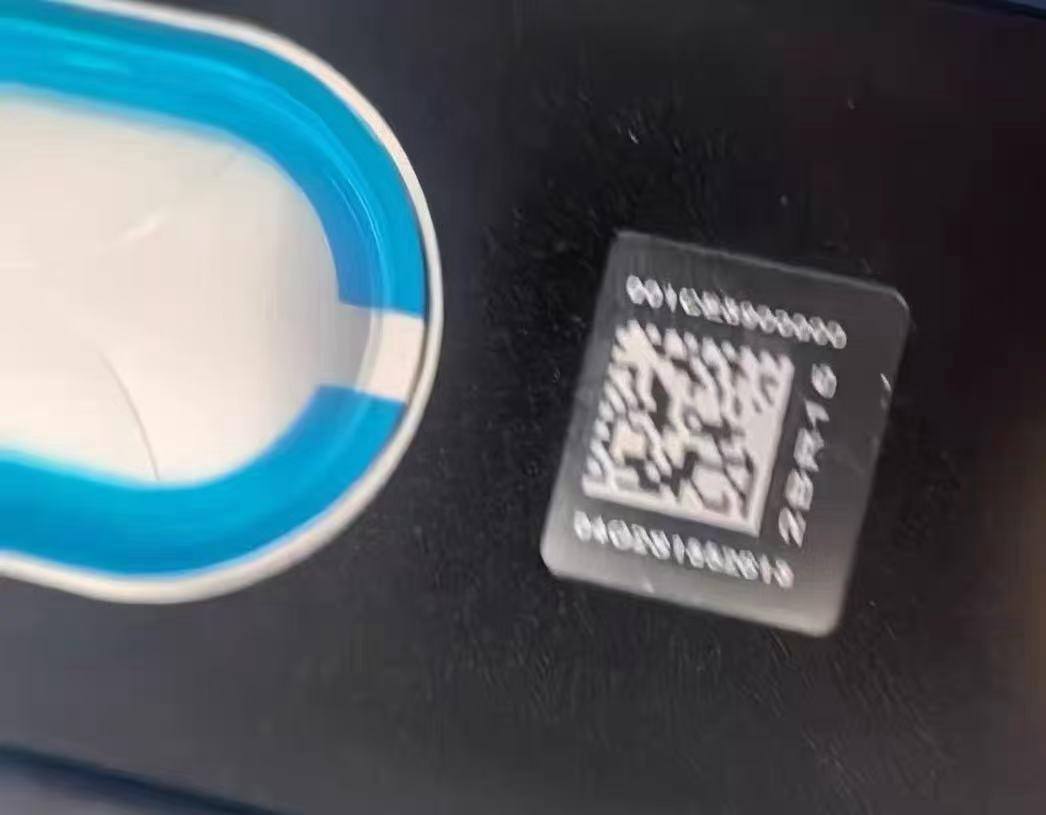

- Individual cell-level QR code traceability on each unit
Technical Specifications
- Chemistry
- NMC (ternary lithium-ion)
- Format
- Prismatic
- Nominal capacity
- 148.5 Ah
- Nominal voltage
- 3.7 V
- Energy per cell
- ~549 Wh (~0.549 kWh)
- Internal resistance
- ~0.3 mΩ
- Dimensions
- 44 × 194 × 114 mm (nominal)
- Weight
- 2.25 kg
Available Documentation
All documentation is available to qualified buyers on request.

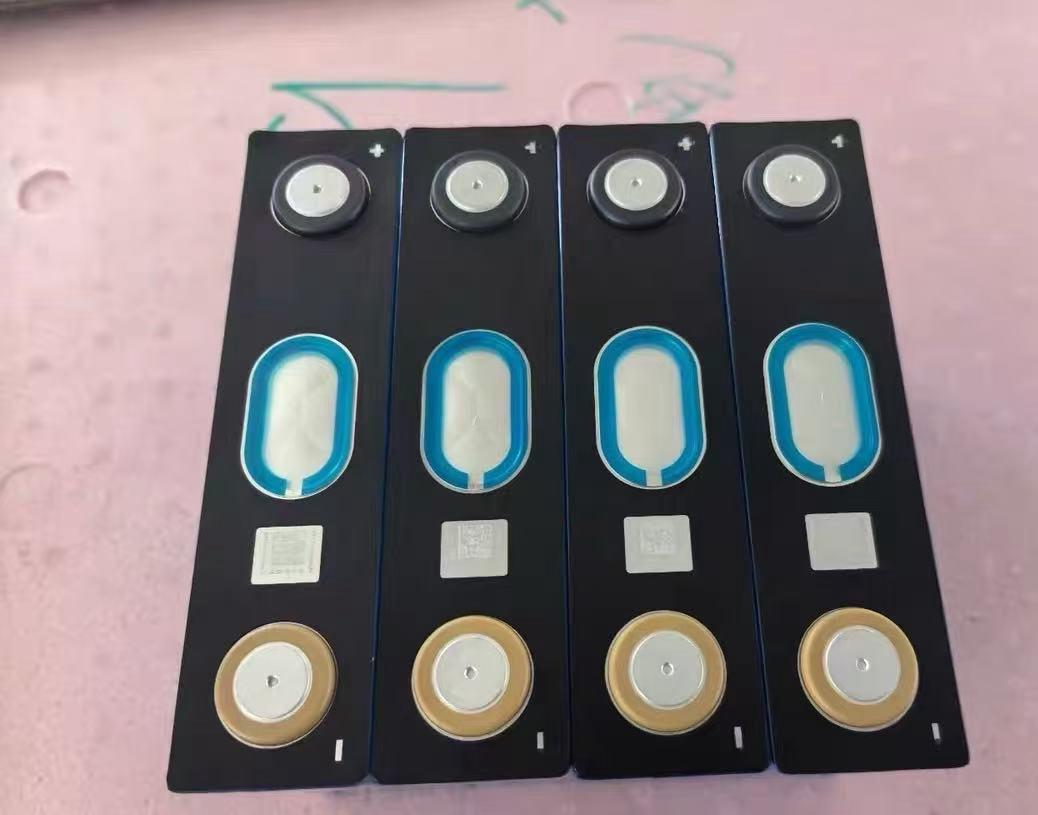

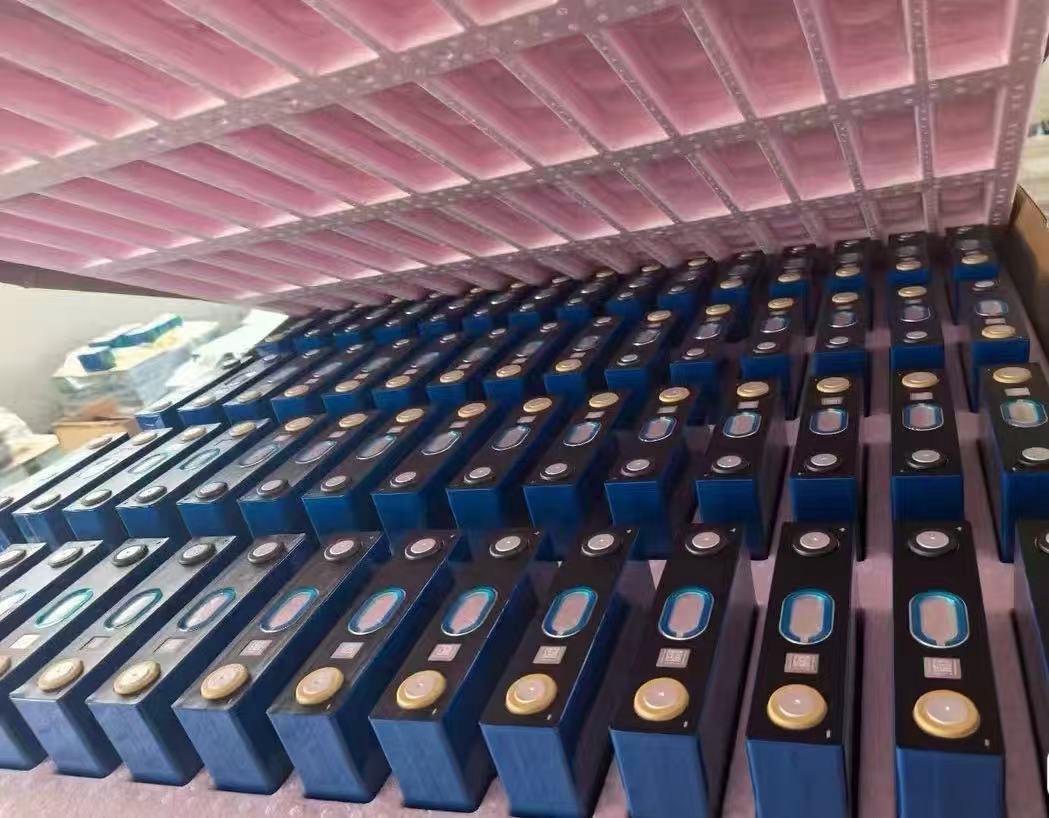

Product Images
Specifications are sourced from the manufacturer datasheet and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
