Exide Marathon PowerCycle M12V190PC
The Exide Marathon PowerCycle M12V190PC is a front-terminal 12 V / 190 Ah VRLA AGM monobloc with Carbon Boost® technology, rated for a 20-year design life and 1,500 cycles at 60% DoD. The sealed, non-spillable construction meets IATA Clause A67 — enabling unrestricted transport by air, road, rail, and sea with no dangerous goods classification required.
Availability
- Quantity available
- 1,000+ units (≥ 2.28 MWh total)
- Total energy
- ≥ 2.28 MWh
- Location
- Belgium
- Status
- Available inventory
- Partial lots
- Minimum quantities subject to negotiation
- Pre-shipment inspection
- Third-party inspection supported on request
- Transport classification
- Non-spillable VRLA — unrestricted transport (IATA Clause A67; road, rail, sea, air)
Condition
- State
- New, unused overstock
- Manufacturer
- Exide GNB Industrial Power — manufactured in Portugal
- Traceability
- Manufacturer batch documentation available on request
Technical Specifications
- Part number
- NAMC120190HM0FA
- Chemistry
- Lead-acid VRLA, High-Compression AGM with Carbon Boost®
- Format
- Pack (12 V monobloc, front-terminal)
- Nominal voltage
- 12 V
- Nominal capacity
- 190 Ah (C10, 1.8 V/cell, 20°C)
- Nominal energy
- 2.28 kWh

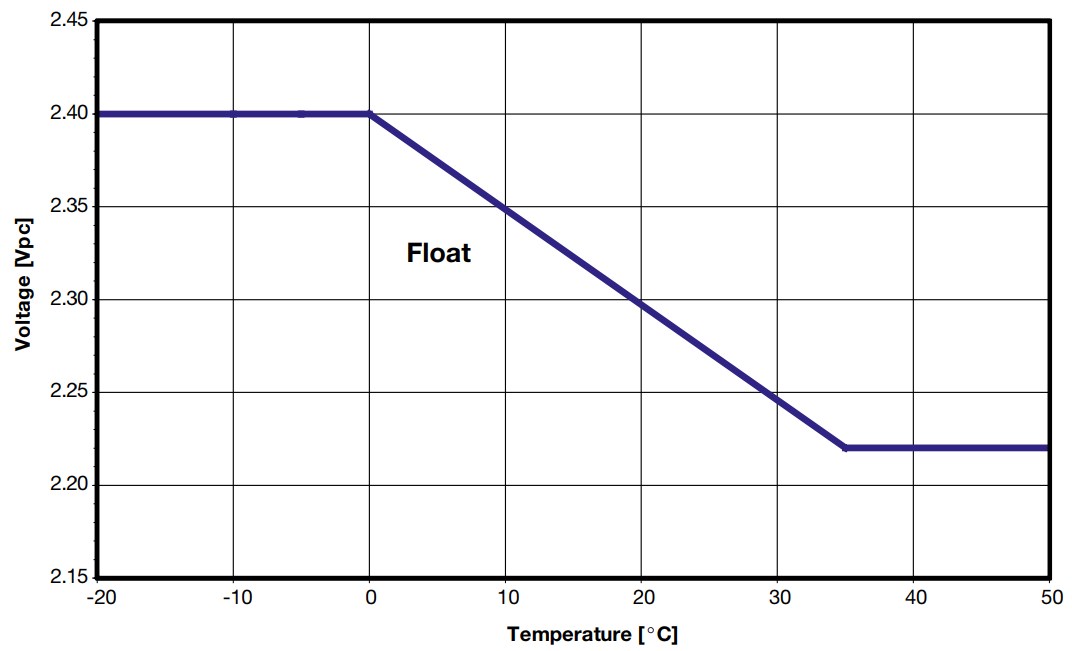

- Float charge voltage
- 2.29 V/cell (20°C)
- Internal resistance
- 3.5 mΩ (IEC 60896-21/22)
- Short-circuit current
- 3,558 A (IEC 60896-21/22)
- Cycle life
- 1,500 cycles (60% DoD, C10, 20°C)
- Design life
- 20 years (to 80% C10, 1.80 Vpc, 20°C)
- High-temp life
- 10 yr @ 35°C · 7 yr @ 40°C
- Gas recombination
- ≥ 99%
- Operating range
- −40°C to +55°C
- Dimensions (L × W × H)
- 125 × 559 × 318 mm
- Weight
- 61 kg
- Terminal
- Front-terminal F-M6-90° (11 Nm torque)
- Container material
- UL 94 HB Polypropylene
- Test standards
- IEC 60896-21/22 · UL
- Classification
- EUROBAT 2015 Very Long Life (> 12 yr)
- Quality management
- ISO 9001 (European manufacturing)
- Transport
- IATA DGR Clause A67 — unrestricted air transport
Available Documentation
All documentation is available to qualified buyers on request.

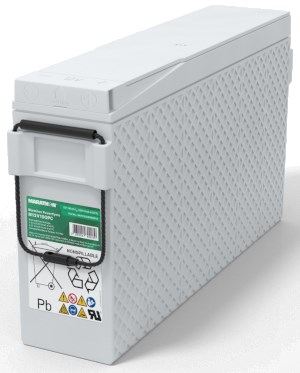

Product Images
Specifications are sourced from the manufacturer datasheet and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
