DV Power IBAR
A handheld internal-resistance tester for stationary batteries: lead-acid, VRLA, Ni-Cd and Li-ion. It reads internal resistance, voltage and intercell connection resistance on offline batteries in about two seconds per cell, flags PASS / WARNING / FAIL against your own limits, and exports to DV-B Win for trending and reports. Used once or twice, sold with the full kit.
Availability
- Quantity available
- 1 complete kit
- Location
- Sweden
Collection or shipping within Europe can be arranged.
Condition
- State
- Used once or twice, fully working
- Manufacturer
- DV Power (IBEKO Power), Sweden
- Kit contents

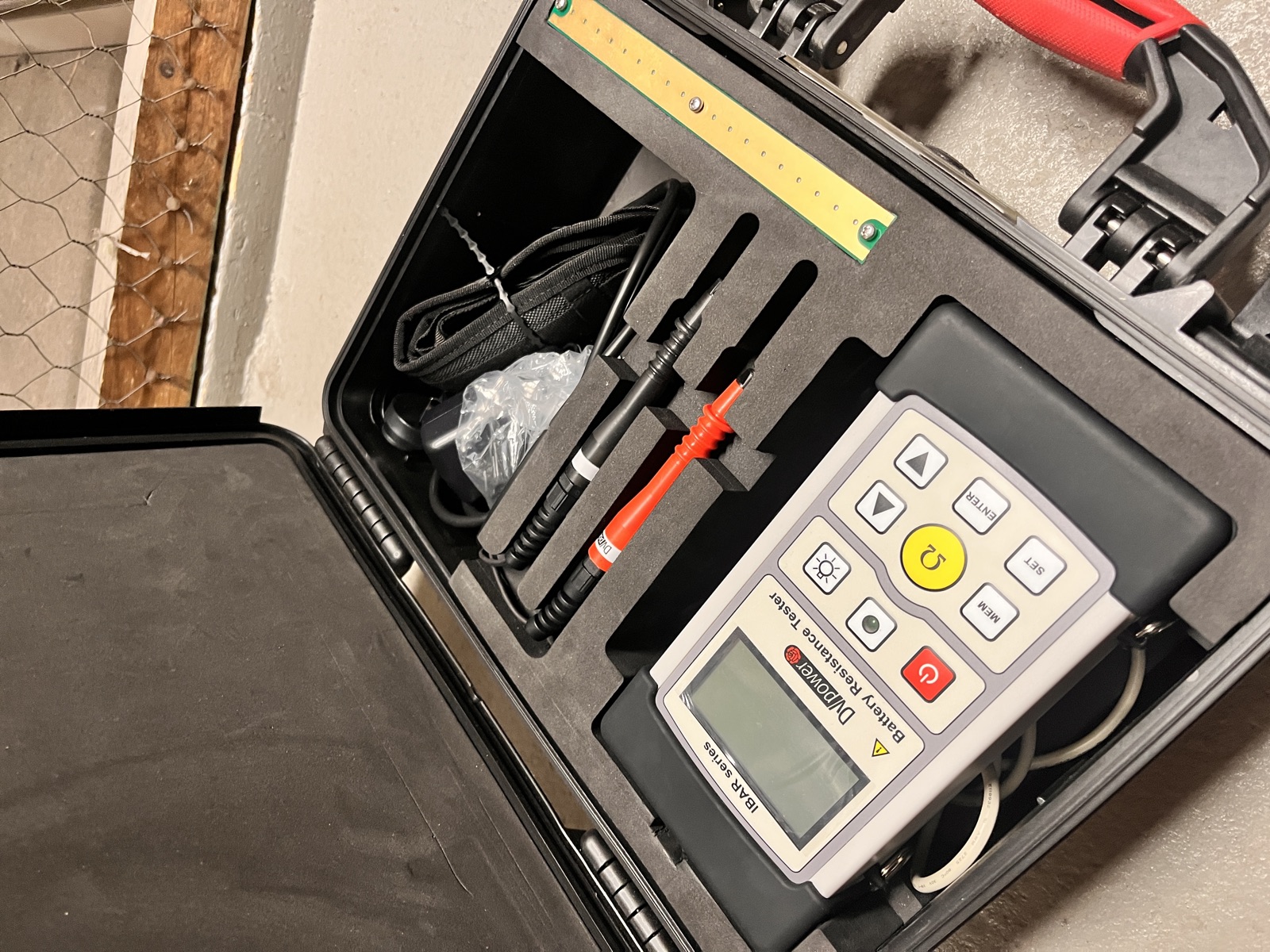

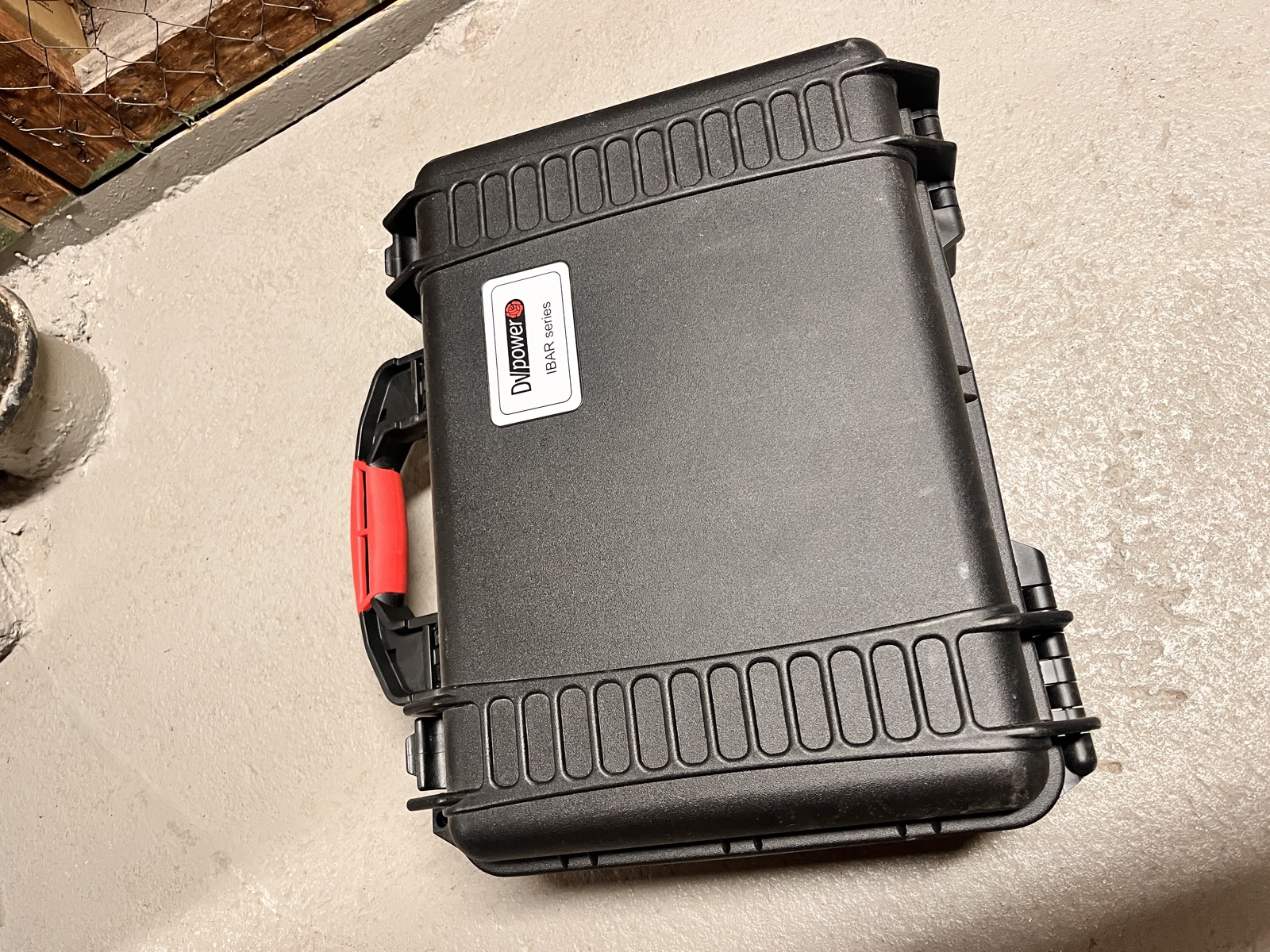

- Instrument, test lead set with pin probes, zero calibration board, power adapter, carrying belts, mini-USB cable, DV-B Win software, hard transport case
Technical Specifications
- < 5 mΩ
- 1 μΩ res. · 150 mA · ±1.0% rdg ±0.1% FS
- 5-50 mΩ
- 10 μΩ res. · 150 mA · ±0.8% rdg ±0.1% FS
- 50-500 mΩ
- 100 μΩ res. · 15 mA · ±0.8% rdg ±0.1% FS
- 0.5-5 Ω
- 1 mΩ res. · 1.5 mA · ±0.8% rdg ±0.1% FS
- Range mode
- Auto range
- Reading time
- About 2 s per cell
- ±6 V range
- 1 mV res. · ±0.1% rdg ±0.1% FS
- ±60 V range
- 10 mV res. · ±0.1% rdg ±0.1% FS
- Internal battery
- 2-cell Li-ion, 7.4 V, 2,900 mAh · 6 h charge
- AC adapter
- 90-264 V AC, 50/60 Hz in · 12 V DC, 1 A out
- Memory
- 64 Mbit internal flash
- Interface
- USB to PC · DV-B Win software
- Display
- 2.8 in FSTN-LCD, 128 x 64
- Dimensions
- 236 x 125 x 50 mm
- Weight
- 0.5 kg
- Operating temp.
- -10 to +45 °C
- Safety
- CE, LVD 2014/35/EU · EN 61010-1:2010, CAT II
- EMC
- CE, 2014/30/EU · EN 61326-1:2013
- North America
- CAN/CSA-C22.2 No. 61010-1
Documentation
Available documents are shared on request.
Specifications are sourced from the manufacturer brochure and believed accurate; they are provided for informational purposes only and do not constitute a warranty. Availability is indicative and subject to confirmation. No title is conveyed until a sales agreement is signed.
